Customizable 5V Corrugated Trapezoidal Roof Tile Steel Making Machine Double Layer Roofing Iron Sheet Metal Manufacturing Cold Roll Forming Machine

Product Description

Product Description
customizable 5v corrugated trapezoidal roof tile steel making machine double layer roofing iron sheet cold roll forming machine
Product Specification

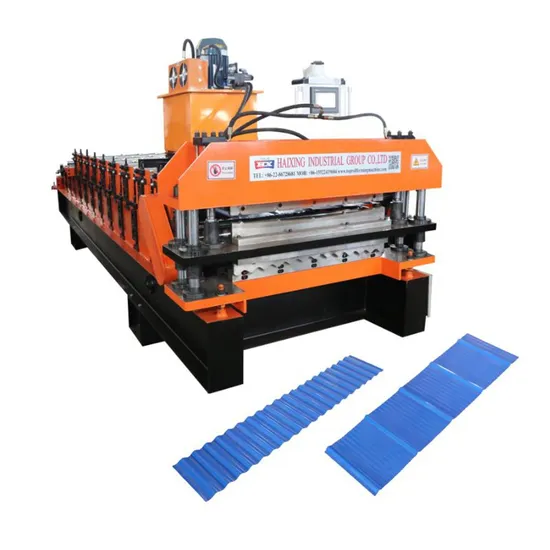

5v corrugated double layer roll forming machine
Formed Material	GI/GL, PPGI/PPGL	Thickness: 0.3-0.8mm, Width: 940mm(customized)
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	5v: 9 rows/corrugated: 13 rows (As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, forging with chromium plate 0.05mm,
	Machine body frame	350 H Beams
	Dimension(L*W*H)	6000 * 1550 * 1600mm (customize)
	Weight	5 Ton
Cutter	Automatic	Cr12 Mov quenched treatment 58ºC-62ºC
	Cutting tolerance	±1mm
Power	Motor Power	5.5KW
	Hydraulic system power	4KW
	Reducer	8# gear reducer
Voltage	380V 50Hz 3Phase	As your requirement
chain	1 inch	As your requirement
Control system	Electric Box	Delta (As your requirement)
	Language	English, Spanish, etc.(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-15m/min	The speed depends on the shape of the tile and the thickness of the material.

Detailed Photos
Manual decoiler
1.Capacity:5T 2.Coil diameter: 470-520mm 3.Coil outer diameter:1000mm 4.Coil width: 940mm(as customers' request)
Feeding table
Function and advantages: 1.Reduce friction: It can reduce the contact 2.area between the material and the surface of the feeding table, thereby reducing friction and making the material move more easily.
3.Save space and easy to maintain.
Remarks: The tail is marked with a hand pull knife (one for each layer, the lower layer is inclined to feed the material)
Main rollers
1.Roller stations: 5v: 9 row wheels, corrugated: 13 row wheels (according to different design, depend on the profile drawing) 2.Roller materila: 45# steel with quenched treatment and hard chroming
3.Shaft diameter: 70mm, solid.
4.Shaft material: 45# steel with tempering treatment.
5.Wheel speed: 10-15M/min
Computer Control Cabinet
Function and advantages: 1.The PLC control system will be in charge of the working condition like the speed, cutting length and cutting quantity.
2.Switching languages is easy to operate, the language can be English, Spanish or as required.
3.The touch screen interface is designed to be intuitive.
Cutting head
1.Work type: Hydraulic 2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment, HRC58-62°
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.
Motor driver
1.Main motor size : 5.5 kw 2.Brand: The famous brand from Jermany or according to customer's need 3.Solenoid valve: 2 groups 4.Hydraulic oil: 46#hydraulic oil Color:Blue (or as customer's request) 5.Working pressure: 12-1 6Mpa adjustable
Hydraulic station power
Hydraulic pump station provide cutting power
1.Hydraulic station power: 4Kw 2.Brand: Lichao, Shanghai
3.Motor with pump capacity of tank: 45L
4.Advantages:The free included fan helps reduce oil temperature, extend service life, improve system reliability, and prevent overheating protection, reduce energy consumption and reduce maintenance costs.
Wearing parts
We will provide the consumable parts of the customizable 5v corrugated trapezoidal roof tile steel making machine double layer roofing iron sheet cold roll forming machine for free!
Packaging & Shipping
1. Nude, with waterproof cloth and stow-wood. lmported computer control system packed with waterproof cloth and cardboard.
2. This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install.and debug the machine for free; if it is used at abroad, we will send a professional technician to debug Buyers should take all the fees for technicians travelling abroad.
3. All the parts in the 5v corrugated trapezoidal roof tile steel-making machine double layer roofing iron sheet cold roll forming machine, are free to maintain long life. If in 18 months our company bears the cost of exchanging the broken partlike the new parts cost and express cost, if more than 18 month, we also free to maintain the broken parts but for send the newparts, the buyer need bear the express cost.
4 .When shipping the customizable 5v corrugated trapezoidal roof tile steel-making machine double layer roofing iron sheet cold roll forming machine, we will also send one set CD and specifications (Chi-nese and English) to you with the machine, they can teach you how to operate the machines.
