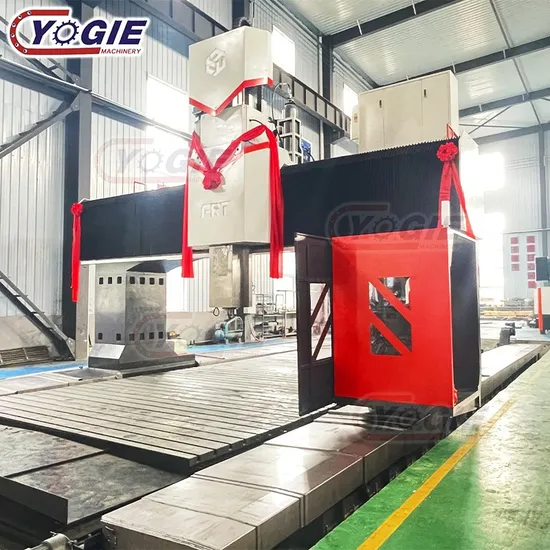

Frtsp-130520b Large Working Size 5 Axis CNC Double Column Machining Center Heavy Duty CNC Milling Machines
| US$75,600.00-486,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FRT-130520
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
ISO 9001, ISO 9001
Condition
New, New
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Type
Gantry Type Milling Machine
Object
Gear, Shaft, Machinery Parts
CNC Operating System
Siemens/Fanuc/Knd
Working Table Size
12000*4000mm
Left and Right Stroke (X)
13000mm
Back and Forth Stroke (Y)
5600mm
up and Down Stroke (Z)
2000mm
Machining Capacity
Heavy Duty
Spindle Taper
Bt50
Use Pull Stud Model
P50t-1
Spindle Speed (Rpm)
4000rpm
Machine Tool Positioning Accuracy (GB /
0.02
Repeated Positioning Accuracy of Machine
0.02
Spindle Power
55kw
Power Supply Requirements
380V
Machine Dimensions
18500*7000*5800mm
Number of Axes
3
Specification
Customized
Trademark
YOGIE
Origin
China, Henan
Product Description
Product DescriptionProduct Parameters
| Technical specification | FRT-SP10400 | FRT-SP120450 | FRT-SP150550 | FRT-SP20650 | |
| Travel | |||||
| XYZ axis travel (worklable left and right movement) | mm | 10000/4350/1500 | 12000/4850/1500 | 15000/5850/2000 | 20000/6850/2000 |
| Distance of spindle nose andworking table surface | mm | 100-1600 | 500-2000 | 500-2500 | 500-2500 |
| Gantry width | mm | 4000 | 4500 | 5500 | 6500 |
| Guide rail | Two linear guide rail,one hardened rail | ||||
| Work Table | |||||
| Table size | mm | 10000X3500 | 12000X4000 | 15000X4800 | 20000X5800 |
| The maximum load capacity of the worktable | T | 15/m^2 | |||
| Spindle | |||||
| The spindle taper (model, sleeve diameter) | BT50 | ||||
| The spindle dimension | mm | 195 | 220 | 230 | 260 |
| Thespindle motor power | kw | 45 | 55 | 65 | 70 |
| Spindle speed | rpm | 4000 | 4000 | 3500 | 3000 |
| Accuracy | |||||
| Precision of position | mm | 0.02/1000 | |||
| Accuracy of repeated position | mm | ±0.015 | |||
| Size | |||||
| Netweight(approx.) | T | 160 | 180 | 220 | 280 |
Company Profile
Our Customers
FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
