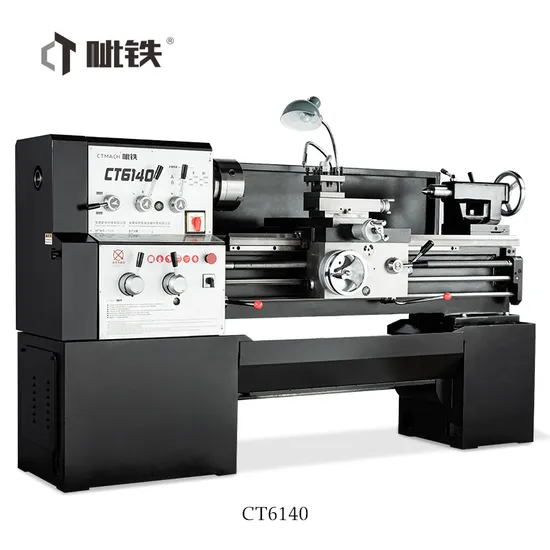

High Quality Mini Lathe CT6140 Manual Bench Lathe for Metal Price
Basic Info.
Model NO.
CT6140
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001, ISO9000 2020
Condition
New
Transport Package
Standard Wooden Packing
Specification
2200*900*1250mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max. swing over bed | 400mm |
| Max. swing over cross slide | 240mm |
| Distance between centers | 1000mm |
| Spindle taper | MT6 |
| Spindle bore | 48mm |
| Max. travel of tail-stock sleeve | 130mm |
| Taper of tail-stock | MT4 |
| Large carriage travel | 900mm |
| Middle carriage travel | 240mm |
| Small carriage travel | 140mm |
| Metric Thread/Grade | 0.45~20mm/r(30) |
| Inch Thread/Grade | 80~1¾T.P.I.(35) |
| Transverse feed /Grade | 0.02~1.08mm/r(138) |
| Longitudinal feed /Grade | 0.04~2.16mm/r(138) |
| Spindle speed range/Grade | 25~1600r/min(12) |
| Main motor power (double speed) | YD132M-8/4 3/4.5kW |
| Main motor speed | 750/1500r/min |
| Cooling pump motor | AYB-20TH 0.115kW |
| Net weight | 1450kg |
| Overall dimensions | 2200×900×1250mm |
| Main drive V-belt model specifications | A-1950mm |
| Modulus thread/Grade | 0.25~10mm(25) |
| Diameter pitch thread/Grade | 160~3½DP(30) |
