Steel Structure Taiwan Precision Spindle Hpd103 CNC Drilling Milling Machine

Product Description

Steel Structure Taiwan Precision Spindle HPD103 CNC Drilling Milling Machine
Product Description
CNC punching machine refers to the technology that uses a computer-controlled punch to punch out the required hole type or pattern. CNC punching has the advantages of convenience, climbing frame CNC punching machine, fast, high accuracy and strong controllability.

Product Parameters

Model		HPD103
Punching Force(KN)		1000
Marking Force(KN)		800
Work thickness Range (mm)		5-25
Max. work piece length (mm)		1500*800
The dies position number		4
Max.Punching Diameter (mm)		26
Minimum distance between the hole and parts edge (mm)		25
Max. Drilling Diameter(mm)		50
Feeding Speed of Drilling(mm/min.)		20-200
Drilling Spindle Rotation Speed		120-560
Character No.		12
Drilling spindle stroke(mm)		180
Character size (mm)		14 x 10 x19

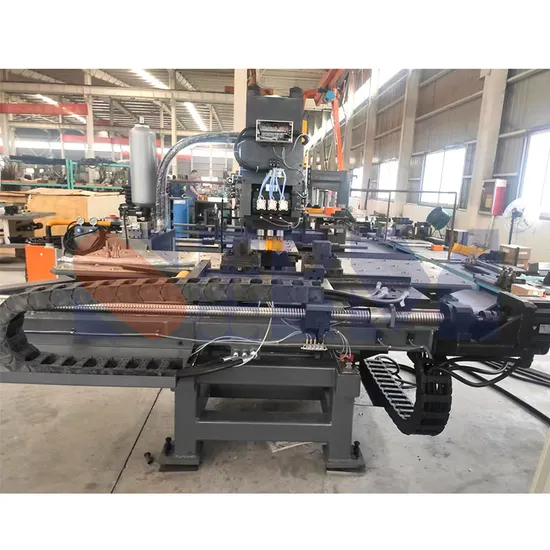

Machine Details
Structure Features:
1.The fuselage is a C-shaped steel plate welded structure with good rigidity and large operating space.
2.The machine is equipped with three working stations(including one typing position),the stations switch is automatically carried out.
3.Clamping system which is suitable for different thickness of the workpiece,with the benchmark zero block,the workpiece is supported by ball worktable.
4.X axis and Y axis running by the servo motor + ball screw + precision linear guide driven by the dual axis CNC system to control the punching position.
5.The whole processing procedure is fully automatic, the operator just need to input workpiece drawing into the computer.

Application
Application: The machine used for high efficiency punching on the connecting plates which used widely in bridge, angle steel and steel structure industries etc.
Packaging & Shipping
1.The milling machine is packaging with protective film.
2.Pack the machine in a wooden box.
3.Load each wooden box into the truck.
4.Fix the milling machine inside the container.
5.Ship the goods to the destination port by sea.
Our Service
1. Advanced Design
Our technical team with more than 14 years rich experience in this field, can design according to customer's requirement. Provide
more advance, creative and more humanized machines to enhance your production efficiency.
2. Excellent ProductQuality
All of our electronic parts and configuration made by famous brand name. such as Siemens, Panasonic, Mitsubishi etc. and do
inspection in each process of production. The third party inspection before dispatch is acceptable
3. After -sales Service
We have the after-sales service team for installation and training, long time regularly maintenance service. Ensure give you
feedback and proposal within 72 hours since receipt of the problem call.
4. Quick delivery
We have enough production ability to finish almost standard models within the promised time. And arrange the delivery fast to
ensure you can got your machines in time
FAQ
1. Who are we?
We are based in shandong, China, start from 2020,sell to South America(30.00%),Eastern Europe(20.00%),Mid East(20.00%),South Asia(15.00%),Southeast Asia(15.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
CNC drilling milling Machine,CNC Beam Drilling Machine,CNC Plate Punching Machine,Angle steel Punching Line,CNC plate drilling machine
4. Why should you buy from us not from other suppliers?
We have more than 15 years of design and production process experience since this field started in china. Have the ability to handle with complicate structure, more advanced design, high efficiency program.provide installation
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
