CNC Gantry Plate Drilling and Milling Machine for Pivotal Bearing

Product Description

ubeCNC Plate Drilling and Milling Machine for Steel plate and tubesheet PHD Series
heet PHD Series
The machine is mainly used for drilling and milling of steel structure, iron tower, bridge, mechanical processing and other industries, such as connecting plate and floor board, drilling and milling of tubes, baffles and flanges in industries such as boiler, petrochemical, pressure vessel and so on; drilling holes, blind holes, step holes, chamfering and light milling.

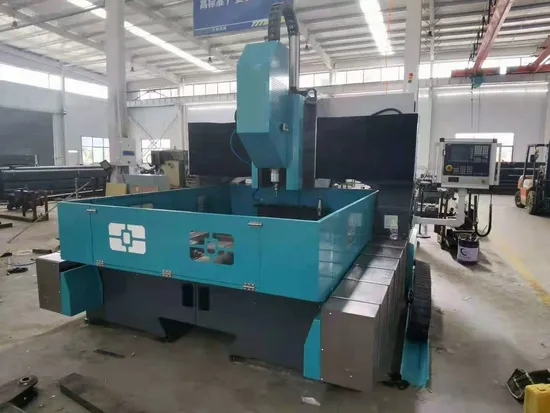

This machine is mainly composed of bed,gantry,drilling and milling power head,electric control system,centralized lubrication system,cooling system and chips removal system etc.
1.The bed is made of high quality gray cast iron, no need foundation.
2.Double side lead screw synchronous driving system, stable performance, flexible movement, accurate positioning.
3.Adopting slide head drilling and milling power head, it can realize the automatic conversion of fast forward, drillng and quickly, and has the function of automatic chip breaking.
4.Adopt BT50 high speed internal cooling precision spindle, can adopt hard alloy internal cold drill bit, processing efficiency is high.
5.Equipped with pneumatic knife cylinder automatic knife replacement, optional tool magazine.
6. KND CNC system+ servo motor control, can directly transfer Auto CAD drawings to general processing program.
7.Automatic chip removal, cooling liquid recycling.
Technical parameters:

Model		PHD2525
Processing size	L*W(MM)	2500*2500
	Thickness(mm)	15-200
	Max. Hole diameter (mm)	70mm(u driller)
Drilling spindle	Quantity of spindle	1
	Model of spindle	BT50 (with center collent system)
	Speed of spindle(r/min)	30-4500
	Feeding stroke(mm)	450 (Servo feeding)
	Tapping diameter (mm)	M20
	Champing mode	Manual
Power of motor	Spindle motor(KW)	22
	X Axis (KW)	2*1.6
	Y Axis (KW)	2.4
	Z Axis (KW)	2.4 (with brake)
Procision of positioning(mm)		0.1
Precision of repeating positioning (mm)		0.08
CNC control mode		KND CNC System 1000FSI
Weight of machine(KG)		15000
Dimension (mm)		4600*3200*2500
Collent method		Inner and outer collent system
Lubrication		Automatic
