Standard 100× 120 Europ Pallet Wood Cut off Saw Double End Chamfering Machine

Product Description

Standard 100× 120 Europ Pallet Wood Cut off Saw Double End Chamfering Machine Product Description

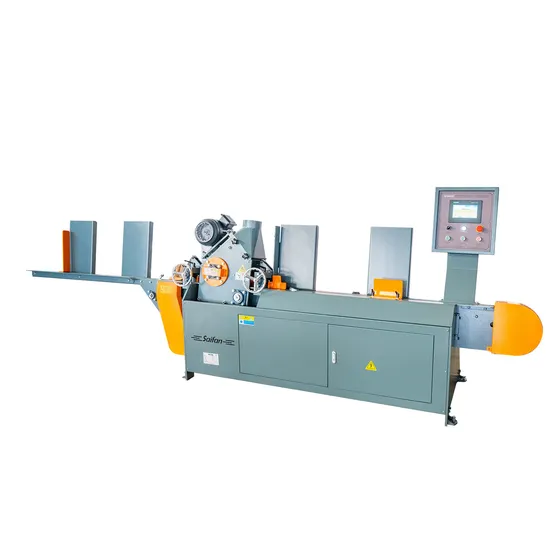

SF7030 wood pallet chamfer machine advantages: Siemens PLC and touch screen, very easy to operate. Has low, middle, high speed adjustable 2 cutters and middle is spacers, different width spacers get different chamfer width. Chamfer heads Inside the safety cover, save to operator and machine. Chamfer Size adjustable on touch screen Stacker, Connect the finished chamfer wood Hydraulic tank with safety cover With Dust collector port Hydraulic system, heavy duty and more stable Application:Make chamfer on deck board, automatically chamfer two sides, the chamfer size and location is adjustable. Our chamfer is PLC and servo control, thus the chamfer dimension is adjustable. And hydraulic system, more stable.
Product Parameters

Model	SF7030
Cutting motor	4kw
Convey servo motor	1kw
Hydraulic motor	2.2kw
Total motor	7.2kw
Voltage	380v 50Hz 3phase
Cutter type	45° V milling cutter, left and right
Working length	600-1500mm
Working thickness	17-35mm
Working width	80-150mm
Productivity	500-700pc/h
Hydraulic pressure	0.4-0.5Mpa
Control system	Siemens
Machine dimension	4450*800*1400mm
Packing dimension	3220*920*1760mm
Machine weight	1040kg
Dust collection port	150mm*1pc

Detailed Photos
Control panel, it contains chamfer program, input parameters from the Siemens PLC touch screen, can edit the chamfer size and location, and speed.

Milling cutter, two piece left and right, it's a special cutter, need to customize from cutter supplier, we can supply you cutter drawing.

Related Products

SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Certifications
Packaging & Shipping
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
