0.5-5mm Rubber Granules Making Rubber Recycling Device Tire Processing Machine

Product Description

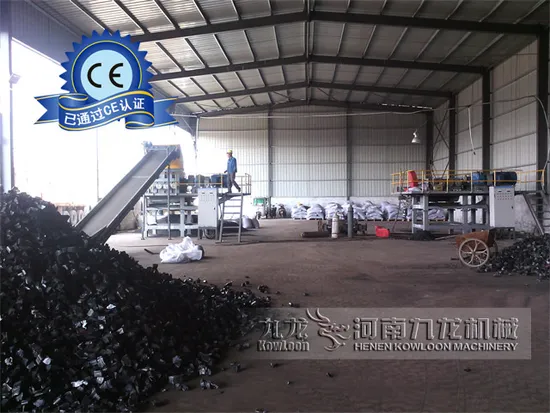

0.5-5mm rubber granules making rubber Recycling device
1. Tire debeader/ tire drawing machine
For pulling out steel lops from tire sidewall in one time (2-heads hook) or in two times (1-head hook)
2. Tire shredder (double-shaft shredder)
For shredding debeaded tires into 50*50mm rubber blocks.
3. Rubber Rasper
Crushing 50*50mm rubber blocks into 10-15mm rubber granules, and separate 98% steel wires by magnet separator.
4. Rubber granulator
For crushing 10-15mm rubber granules into 1-7mm rubber granules.
5. Rubber mill
For milling 1-7mm rubber granules into 30-120mesh rubber powder.
Technical Parameters of tire shredder:

Model	JLSS1200	JLSS1500	JLSS1900	JLSS2600
Main shaft power	37kw*2	45 kw*2	90 kw*2	160 kw*2
Main shaft rotary speed	6-10rpm	6-10rpm	6-10rpm	6-10rpm
Working capacity	6-15t/h	8-18 t/h	10-25 t/h	15-35 t/h
Weight	7000kg	13000 kg	16000 kg	36500 kg
Discharging conveyor	Optional	Optional	Optional	Optional
Conveyor motor power	3kw	3kw	3kw	3kw
Detachable knife diameter	φ530-720	φ530-720	φ530-720	φ530-720
Detachable knife cutting head(adjustable)	1,2,3,6	1,2,3,6	1,2,3,6	1,2,3,6
Finished ships size	3-10cm	3-10cm	3-10cm	3-10cm
Feeding tank size(L*W)	1.4*1m	2*2m	2.3*2m	2.425*2.4m
Dimension (L*W*H)	3.2*2.1.9m	4*1.7*2.4m	8*2.5*2.4m	8.2*4*4.3m

For more information, please feel free to contact me.
Packaging & Shipping
Brief introduction: Kowloon was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 31 years experience on manufacturing wood processing machinery ,construction machinery and recycling machinery. Kowloon machines adopt advanced technology from USA, Germany, Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries. Kowloon support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line, also whole recycling line for waste tire, used metal, plastic, MSW etc materials in China or abroad, under the support of internal business department, Kowloon is able to take "Turn-Key" projects in China or abroad. What is more, our machines were approved by CE, BV, SGS and ISO certificates, exported to more than 30 countries and share market in worldwide. Kowloon never stops improving and researching, we developed many new products in the past years based on the traditional technologies, such as new type wood chipper, mobile type and diesel type crusher and chipper, heavy duty durable shredders, new type wood pallet crusher and so on. More and more machines become popular in Chinese and abroad market and won a good reputation. To better meets the worldwide market, Kowloon accept requests to customize machines according to users' demand, warmly welcome to inquiry us with detailed requirements, all Kowloon people would offer best and all possibility!
FAQ You May Have Following Questions:
Q1:Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 13 years' experience in Machinery Manufacturing,we provide you competive Factory Price and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide the installation if necessary.
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
