Z5050A Updriing Machine 50mm Drilling Capacity
| US$3,200.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5050A
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Certification
CE, Ecm
Condition
New
Max .Travel Spindle : 180mm
Swivel of Table and Table Rest : 45°
Spindlespeed:42-1865
Table Size :575*565
Transport Package
Wooden Case
Trademark
White eagle
Origin
Made in China
HS Code
8459290000
Production Capacity
500/Months
Product Description

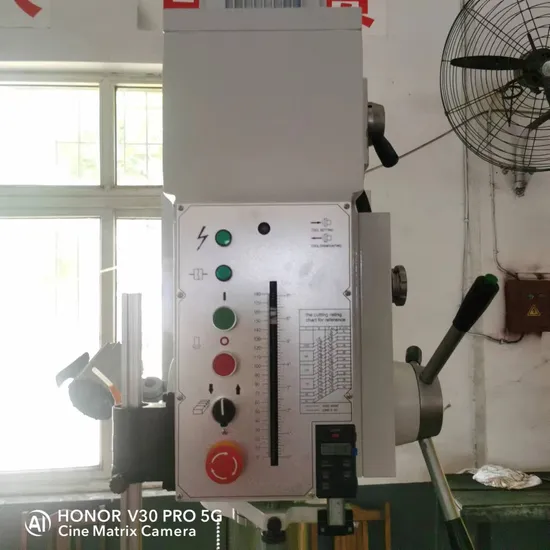

Mini Type Drilling & Milling Bench Drilling Machine (Z5050A)Product picture:
Product main features:
1) Max drilling dia. 50mm
2)Max Tapping dia M24
3)Table size: 370*500MM
| Main Specification | |||||||
| No | Description | Specification | Unit | ||||
| 1 | Max. Dia. Drilling | 50 | mm | ||||
| 2 | Max.tapping capacity | M32 | mm | ||||
| 3 | Distance between axis of spindle and generating ling of column | 360 | mm | ||||
| 4 | Max. Distance between spindle nose and surface of work table | 600 | mm | ||||
| 5 | Max. Distance between spindle nose and base surface | 1205 | mm | ||||
| 6 | Max. Travel of spindle | 180 | mm | ||||
| 7 | Max travel of work table and bracket | 525 | mm | ||||
| 8 | Horizontal swing degree of work table and bracket | ±45° | degree | ||||
| 9 | Taper of spindle bore | 4 | Morse | ||||
| 10 | Number of spindle speeds | 12 | steps | ||||
| 11 | Range of spindle speeds | 42,62,85,125,160,240 | r/min | ||||
| 325,485,640,960,1245,1865 | |||||||
| 12 | Spindle feed steps | 4 | steps | ||||
| 13 | Spindle feed range | 0.07,0.15,0.26,0.40 | mm/r | ||||
| 14 | Dia.. of column | ф170 | mm | ||||
| 15 | Effective working area of table | 500×370 | mm | ||||
| 16 | Effective working area of base | 575×565 | mm | ||||
| 17 | Work table and base T-slot | 2-14, 2-20 | mm | ||||
| 18 | 3-phase 2-speed AC Motor | Power | 2.2/2.8 | Kw | |||
| Voltage | 380(220-575) | V | |||||
| Speed | 940/1440 | r/min | |||||
| 19 | 3-phase electrical pump | Power | 0.085 | Kw | |||
| Voltage | 380(220-575) | V | |||||
| Flow rate | 12 | L/min | |||||
| 20 | Electromagnetic clutch | Power | 0.024 | Kw | |||
| Voltage | 24 | V | |||||
| 21 | Machine dimension(L×W×H) | 700×1150×2200 | mm | ||||
| 22 | Machine Weight (Gross/net) | 676/758 | Kg | ||||
| Model Z5050A | Packing List | Page 1 | ||||
| Dimension: (L×W×H) 115CM×70CM×215CM Gross weight: 880Kg Net Weight: 800Kg | ||||||
| No. | Item | Spec | Q'ty | Remarks | ||
| 1 | Main machine | 1 | ||||
| 2 | Main motor | YD 112M-6/4 | 1 | |||
| 3 | Spanner drill chuck | 1-13 | 1 | |||
| 4 | Connecting bar of drill chuck | MT-4 | 1 | |||
| 5 | Short sleeve for taper shank tool | 4-3 | 1 | |||
| 3-2 | 1 | |||||
| 3-1 | 1 | |||||
| 6 | Wedge for taper shank tool | Wedge 1 | 1 | |||
| Wedge 3 | 1 | |||||
| 7 | Hex nut | M16 | 4 | |||
| 8 | Foundation bolt | M16x300 | 4 | |||
| 9 | Washer | 16 | 4 | |||
| 10 | Double head wrench | 22×24 | 1 | |||
| 11 | Washer | 14 | 4 | In the machine | ||
| 12 | Spring washer | 14 | 4 | In the machine | ||
| 13 | Hex bolt | M14×35 | 4 | In the machine | ||
| 14 | Fuse | Ф5×20;3A | 2 | |||
| 15 | Operation manual | 1 | ||||
| Certificate of inspection | 1 | |||||
