13000 Gauss Strong Magnetic Separation Rod Magnet Bar with 304 /316L Tube

Product Description

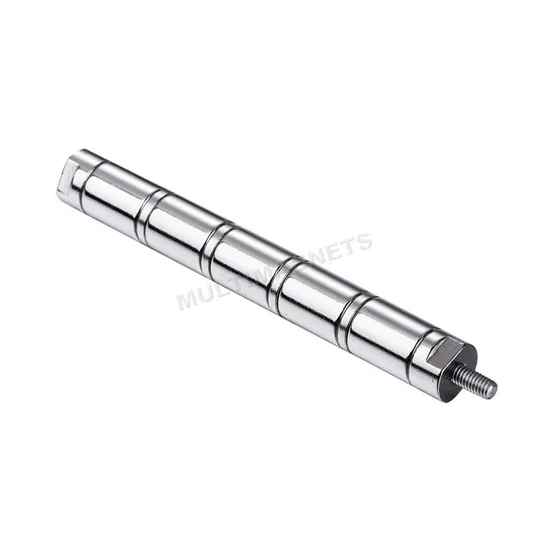

13000 Gauss strong magnetic separation rod magnet bar with 304 /316L tube
Magnetic bar also named as magnetic rod, magnetic tube which is made of SUS tube & several neodymium magnets or ferrite magnets which used to separate a variety of fine power, iron or other Impurities with magnetic material in liquid or semi-liquid. It is widely used in chemical, food, waste recycling, carbon black and other fields.
Our magnetic rods use TIG welding at the ends (seamless) and then polishing to ensure the good tightness & leakage that is used in liquid environment well.
Features of magnetic rod:
-Standard magnetic bar is a cylinder with the diameter of D25mm (1 inch).
-The magnetic bars normally made of seamless SUS304 tubes or 316L tubes and were fine polished that the roughness can meet Ra0.6.
-Different installation End Plugs can be chosen---Threaded studs, Tapped holes, Plain ends.
-The maximum magnetic induction intensity can reach 14000Gs for the magnetic bar with the diameter of 25mm.
-The standard working temperature can reach 80ºC and the maximum working temperature can reach 350ºC if need.
Multimagnets supplies strong magnetic bars also called magnetic rod & magnetic tube in various sizes, materials (SS304/316/316L) and custom length, like D12mm, D19mm, D25mm, D32mm etc. Even square shape is available to offer and there are Taped holes, threaded studs or plain ends based on your requirements.
After 4 times of polishing processes, the roughness can meet Ra0.6, widely used in food and pharmaceuticals industry.
After appearance and surface gauss inspection, magnetic bar is packed as following ways to protect it from damage during delivery.
The relationship between the diameter and max. Gauss value is as below:

	6000Gs	7000Gs	8000Gs	10000Gs	11000Gs	12000Gs	13000Gs	14000Gs
Φ12	√	√	√
Φ16	√	√	√	√
Φ20	√	√	√	√	√
Φ25	√	√	√	√	√	√	√	√
Φ28	√	√	√	√	√	√	√
Φ32	√	√	√	√	√	√	√
Φ38	√	√	√	√	√	√	√
Φ50	√	√	√	√	√	√	√	√
Φ63	√	√	√	√	√	√	√	√
Φ100	√	√	√	√	√	√	√

Below is the application of magnetic rod / magnetic filter bar for your reference:
Gauss testing of magnetic filter bar:
D19/D25/D32 is our standard sizes of magnetic rod, other sizes or some different requirement, please contact us.
Shipment: Magnetic bar can be shipped by Air, Express, Truck and by sea. But it must be shielded if by air or Express.
How to promise the quality: Quality is our culture! To ensure our quality, all magnets are produced with 100% new standard material rather than recycled or bad materials. Besides our professional QC department will inspect the magnet for each stage, including magnet grade, coating, dimension, tolerance and pulling force for pot magnet, magnetic hook, fishing magnet or other magnetic assemblies. So that our magnet rod pass rate is as high as 99.5%.
Sample: Sample of magnetic rod is available to provide within 2 days if we have it in stock. Otherwise, it takes 7days to customize.
MOQ of magnetic separation rod: there is no special MOQ for you, small order is available to accept.
Custom service: Custom service is our advantage. Multimagnets has a professional technical team to support our customers. We can provide roughness professional CAD drawing, strength simulation of magnetic filter bar / magnetic rod, even that Multimagnets can assist you to design a new magnet. For some Amazon customer, Multimagnets always provide free labeling and professional photos taking.
