Carbonated Water Washing Filling Capping Monoblock Filling Equipment
| US$84,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JR40-40-10D
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Bottle
Packaging Material
Plastic
Washing Head
40 Head
Filling Head
40 Head
Capping Head
10 Head
Volume
200-2000ml
Power
7.5kw
Weight
10000kg
Auto
Full
Guarantee
12 Month
Maintenance Period
12 Month
Transport Package
Wooden Case
Specification
4250*3250*2900mm
Trademark
JINRONG
Origin
China
HS Code
8422301090
Production Capacity
13000b/H
Product Description

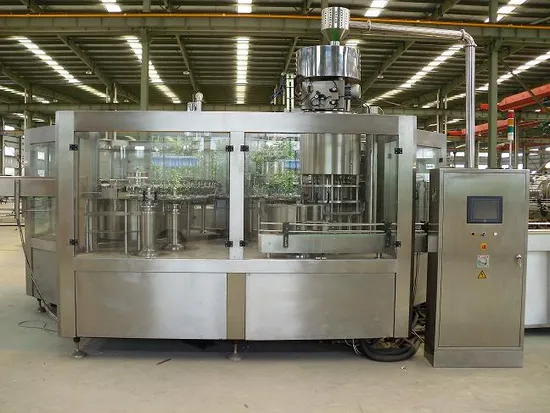

The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new isobaric pressure filling, stable and reliable. Compared with the machines of the same specification, the productivity and benefit of this machine is larger.The machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
| Washing Workstation | 40 |
| Filling Workstation | 40 |
| Capping Workstation | 10 |
| Production Capacity | 13000B/H(500ml) |
| Machine Power | 7.5kw |
| Machine Weight | 10000Kg |
| External Dimensions (L*W*H) | 4,250 (mm)*3,250(mm) *2,900 (mm) |
