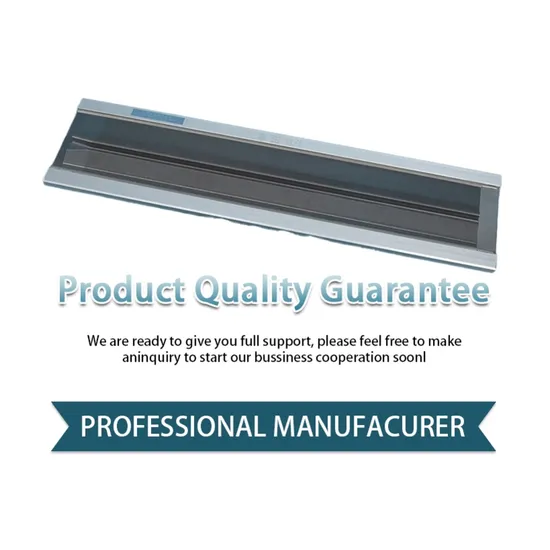

Tsudakoma Warping Guide Needle Yarn Separator Steel Reed for Textile Machine Spare Parts
| US$120.00-200.00 | 20 Meters (MOQ) |
Basic Info.
Model NO.
Tsudakoma
After-sales Service
Perfect Logistics
Metal
Hard
Surface
Smooth
Texture
Stainless Steel
Applicable Industries
Manufacturing Plant, Machinery Repair Shops
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Name
Reed
Material
Steel, Aluminium Alloy
Function
Weft Wire Beat-up
Application
Wire Mesh Weaving Loom
Wire Diameter
0.02-0.8mm
Thickness
7mm, 10mm, 12mm
Weight
5-10kg
Single Gross Weight
2.000 Kg
Use
Loom
Transport Package
Wooden Case
Specification
2100*350*150mm
Trademark
zhenshi
Origin
Nantong, Jiangsu, China
HS Code
8448420000
Production Capacity
50000m/Year
Product Description
Product Descriptionmain products
Specializing in the production of special reed for Toyota, Begala and Tsuda Colt and double towel air-jet reed, energy-saving air-jet reed, stainless steel flat. High quality, high precision reed
Introduction of foreign production technology, Reed sheet made by precision machining, Its elasticity is good, High wear resistance, Surface accuracy and smoothness reach the current international level.
| Seriess tainless steel flat reed | Series air-jet loom reed |
| Flat reed of various rapier eyes tatting machines | Various air-jet looms with special reed{super high wear resistance} |
| Special flat reed | Double reed bend |
| Stainless steel reed beam | Cone{bell mouth} |
| Stainless steel reed | Reed beam{super hard} |
| Stainless steel wire tie | Stainless steel reed stainless steel half yuan |
| Stainless steel semicircle | Stainless steel wire tie |
Air-jet reed (double-layer air-jet reed) for various air-jet looms
| type | H | h1 | h2 | h3 | d | α | a |
| TSUDAKOMA ZA100series | 111.5 | 12 | 18 | 51 | 8 | 12° | 105 |
| TSUDAKOMA ZA200series | 122 | 12 | 18 | 56 | 8 | 12° | 113 |
| TSUDAKOMA ZAXseries | 122 | 12 | 18 | 56 | 8 | 12° | 113 |
| SULZER TEXTIL series | 118 | 10 | 20 | 57 | 8 | 0° | 112 |
| DOMESTIC | All kinds of reeds for air-et looms | ||||||
| SPECIAL TYPES | All kinds of special reed can be developed according to the user s requirements | ||||||
Air jet profiled reed (double reed bend)
High quality, high precision and extra wide reed
The introduction of the world's most advanced reed production equipment, technology, technology and testing instruments to meet customers with high speed, high efficiency, low consumption, high additional benefits to maximize high-quality precision manufacturing.
Various nozzle air-jet reeds and special grooves of loom models
Stainless steel flat reed (double reed) is used for various types of rapier plate shuttle reed, according to the requirements of the rapier loom for the matching reed flatness, must meet the flatness of the requirements of 0. 1mm. Otherwise, it will increase the loss of loom accessories and the quality and life of the whole operation, as well as the quality of the fabric.
