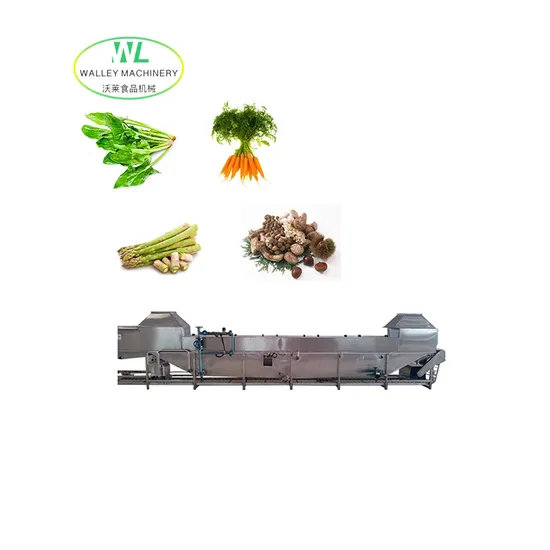

Customizing UPT Basket Type Blancher for Vegetable and Fruit
Basic Info.
Model NO.
UPT
Type
Blancher
Voltage
380V
Power
2.6kw
Customized
Customized
Application
Vegetable Fruit
Name
Blanching Machine
Function
Blanching
Capacity
500-1000kg/H
Materials
SS304/316
Transport Package
Blue Iron Sheet or Wooden Case
Specification
7800x1030x1400mm
Trademark
Walley
Origin
Shaoxing Walley
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
780.00cm * 103.00cm * 140.00cm
Package Gross Weight
1000.000kg
Product Description
UPT basket type blancher ApplicationUPT basket type blancher is suitable for blanching and sterilizing of vegetables,fruits,aquatic products and agricultural products before freezing and drying. Especially suitable for long-strip and easy-damaged products which need precise blanching time.This machine usually works with basket type cooler together.
Main technical parameters
Capacity:500-1000kg/h
Power:2.6kw
Steam consumption:400-600kg/h
Water consumption:300kg/h
Dimension:7800x1030x1400mm
Blanchers Model
| Model | Type | Capacity (kg/h) | Dimension (mm) | Power required (kw) | Steam consumption (kg/h) | Water consumption (kg/h) |
| SPT-S | Spiral type hot water blancher | 500-1000kg/h | 4380*1480*2180 | 2.6kw | 500-1500kg/h | 300kg/h |
| This machine is suitable for blanching and sterilizing of vegetables, fruits and aquatic products before freezing, drying and pickling; especially suitable for granules, slices and short-strip products. | ||||||
| SPT-Z | Spiral type steam blancher | 500-1000kg/h | 3000*1450*2650 | 3.3kw | 300-500kg/h | |
| This machine is suitable for blanching and sterilizing of vegetables, fruits and aquatic products before freezing, drying and pickling; especially suitable for granules, slices and short-strip products. | ||||||
| DPT-S | Belt type hot water blancher | 300-500kg/h | 4600*1200*1380 | 3.0kw | 300-500kg/h | 200kg/h |
| This machine is suitable for blanching and sterilizing of vegetables, fruits and aquatic products before freezing, drying and pickling; especially suitable for long-strip and large-shape products which need long blanching time. | ||||||
| DPT-Z | Belt type steam blancher | 500-1000kg/h | 4050*1250*1500 | 1.1kw | 300-500kg/h | |
| This machine is suitable for blanching and sterilizing of vegetables, fruits, preserved fruits and aquatic products before and after freezing, drying and pickling; especially suitable for granules. | ||||||
| UPT | Basket type blancher | 500-1000kg/h | 7800*1030*1400 | 2.6kw | 400-600kg/h | 300kg/h |
| This machine is suitable for blanching and sterilizing of vegetables, fruits. aquatic products and agricultural products before freezing and drying; especially suitable for long-strip and easy-damaged products which need precise blanching time. This machine usually works with basket type cooler together. | ||||||
| BPT-S | Water-bath type pasteurizing machine | 500-1200kg/h | 12150*1200*1650 | 1.85kw | 500-1000kg/h | 200kg/h |
| This machine is suitable for pasteurizing products in bag, bottle, bowl and cup under 100 degree, such as pickled tuber mustard, potherb mustard, jelly, rice wine, soybean sauce, duck neck and duck tongue, etc. | ||||||
Detailed pictures
Our customer
Welcome to send inquiry!
