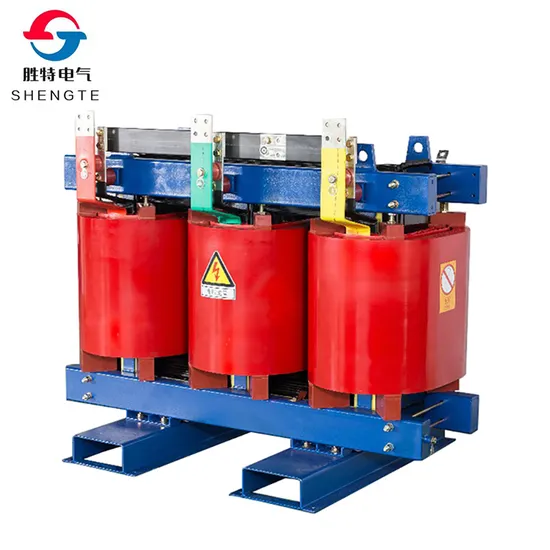

30 100 140 250 500 800 1000 1600 2500 3500 kVA 10kv 0.4kv Voltage Three Phase Cast Resin Dry Type New Energy Car Charging Station Power Distribution Transformer

Product Description

Product Description SCB10 20kva 25kva 50kva 80kva 100kva 160kva 200kva 350kva 400kva 10kv 11kv 0.4kv Dry Type Transformer 500kva 600kva 700kva 750kva 800kva 1000kva 1600kva 2500kva 3000kva 3 Phase Cast Resin Isolation Electric Power Transformers
Features
1. Low loss, low partial discharge, low noise, strong heat dissipation, and can be operated at 120% rated load under forced air cooling.
2. It has good moisture-proof performance and can operate normally under 100% humidity. It can be put into operation without pre-drying after shutdown.
3. It is safe to operate, fire-resistant, non-polluting, and can be installed directly in the load center.
4. Equipped with a complete temperature protection control system to provide reliable protection for the safe operation of the transformer.
5. Maintenance-free, simple installation and low overall operating cost.
6. According to the operation research of the products that have been put into operation, the reliability of the products has reached the international advanced level.
Product Parameters

Rated Capacity	100kVA
High Voltage	10/11kV
Low Voltage	0.4kV
Impedance Voltage	4%
No-load Loss	0.4kW
Load Loss	1.57kW
No-load Current	0.7%
Frequency	50/60Hz
Connection Method	Yyn0/Dyn11
Insulating Level	F/F
Noise	42dB
Material	aluminum/copper
Size	1030x750x1020mm
Weight	830kg

Production Process
Company Profile

Our Advantages 1. We have more than 10 years of manufacturing experience in the electric industry. 2. We have passed the "ISO9001 Quality System International Certification" and obtained a number of national authorized technology patents. 3. Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year. 4. We have advanced transformer production and testing equipments, and innovative technology. 5. We have a group of professional R & D and design personnel, installation and after-sales team. 6. We can provide professional OEM & ODM service. Guangdong Shengte Electric Co., Ltd. is located in Danzao Town, Nanhai District, Foshan City. It is an innovative enterprise focusing on green power distribution, energy saving and environmental protection. The power distribution products mainly include: S11 / S13 oil immersed transformer; SH15 amorphous alloy oil immersed transformer; SCB10 / SCB11 epoxy resin cast dry transformer; SGB11 open transformer; Combined (American) transformer; Pre-installed (European) substation; High and low voltage electrical equipment. It has become a qualified supplier of well-known enterprises such as China Southern Power Grid, State Grid, Evergrande Real Estate, China Railway, etc. The sales network covers most provinces and cities in the country and has been continuously expanded to overseas markets.

Project Cases
Certifications
Exhibition
Packaging & Shipping Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: How long have you been worked in the electric industry?
A2: We have been worked in the electric industry for more than 10 years. We have own research and development department that has 15 engineering technicians.
Q3: How long is the warranty period?
A3: It is 1 year.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What's the payment terms?
A6: We accept T/T, Western Union, PayPal, etc.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Export standard package or special package according to customer's requirement.
