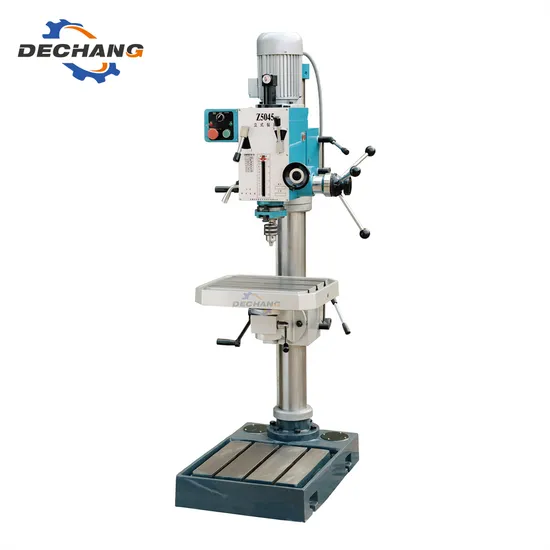

High Quality and Cheap Drilling Machine Z5045 Metal Drilling Machine

Product Description

High Quality and Cheap Drilling Machine Z5045 Metal Drilling Machine
Product Description
Main technical Specifications:

Specifications	Z5032	Z5040	Z5045
Max.drilling dia.	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
spindle speed steps	6	6	6
spindle speed range 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max travel of headstock	250mm	250mm	250mm
Swivel angle of headstock (horizontal/perpendicular)	360°/±90°	360°/±90°	360°/±90°
Max travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Net weight/Gross weight	430kg/480kg	432kg/482kg	435kg/485kg
Packing size	1850×750×1000 mm	1850×750×1000 mm	1850×750×1000 mm

Detailed Photos
Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
