High Efficiency Device Paper Normal Size Hard Paper Shredder Machine

Product Description

Product Description

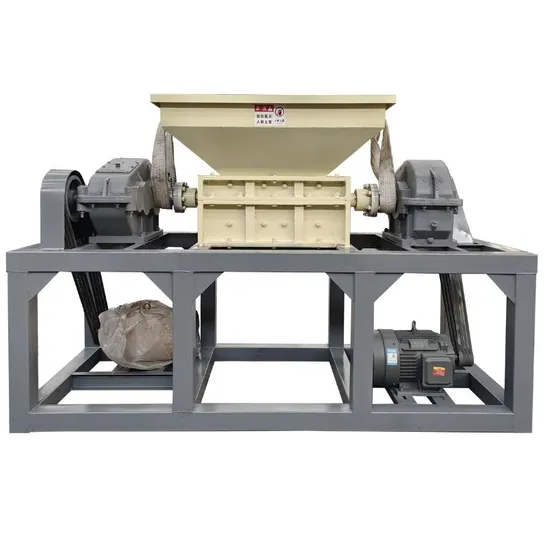

High Efficiency Device Paper Normal size Hard Paper Shredder Machine
Double-roll shredder is a special shredder designed for films, woven bags, packing belts, etc. Adopting a unique double-roller design, it has the technical characteristics of compact structure, anti winding and high efficiency. It can meet the recycling requirements of various industries
Application
Double hob shredder blade is suited for shopping bags, garment bag, plastic bag, food bag/wrap, foam wrap, pallet wrap, shrink wrap, paper towel and toilet paper overwrap, airpacks (from shipped packages), agricultural film, industrial film, BOPP plastic film, printed film,woven bag, tons bag,jumbo bag,raffia bag, Big Bag, Raffia Big Bag ,Bulk Bag.
Screen structure:Different mesh structure and different mesh diameter are used for shredding different materials
More styles and types support customization, please contact me for details.
For more quotation details, please contact us!

Detailed Photos
Compared with other waste disposal equipment, the double-shaft hob shredder is:
1. Professionally shred soft materials with good shredding effect. The high-speed rotation and staggered motion of the double-axis hob can evenly shred and destroy waste soft items to achieve the ideal granularity and shape.
2. Good durability. Equipment components are mostly made of alloys and special materials, which have high durability and stability.
3. High degree of automation. The equipment adopts an automated production line, which can realize automatic transportation, shredding and discharging of items, reducing manual intervention.
According to the actual situation of customers, the design and configuration of hopper/loading conveying device/discharging conveying device/magnetic separation
Advantages:
1) The double-roller design has a tearing effect on crushed materials with higher efficiency, suitable for easy-winding materials.
2) The rotary can be used for multiple times by changing the angle according to the wear condition, saving cost.
3) The bearing house were installed outside the cabinet, sealed by rubber ring to prevent the crushed material into the bearing box, ensure a longer service life.
4) The hydraulic system could achieve fast screen exchanging, short-time maintenance through automatically opening and closing, adjust the pushing speed in according with different pushing speed to avoid overload.
Product Parameters
For more quotation details, please contact us!

Model		MCSG-600	MCSG-800	MCSG-1000	MCSG-1200	MCSG-1400	Customized
Power	KW	18.5*2	22*2	30*2	37*2	45*2	Machine is supported to be customizable according to clients' needs
Rotary Speed		80rpm	80rpm	80rpm	80rpm	80rpm
Reducer		H4	H5	H6	H7	H8
		Using domestic first tire brand Guomao hard tooth reducer(Customized)
Blades Quantity		44	60	76	92	116
Blades Rotary Diameter		300mm	300mm	300mm	300mm	300mm
Blades Material		DC53
Shred Chamber Size		600*600	800*600	1000*600	1200*700	1500*700
Outlet Port Size		20-80mm	20-80mm	20-80mm	20-80mm	20-80mm
Hopper size		800*800m	1000*1000m	1200*1200m	1500*1500m	1800*1800m
		Customizable
Weight		2t	3t	4.5t	6t	8t
Capacity		0.5-1t	1-2t	2-3t	3-5t	5-8t
Dimension		2.6*1.1*1.6m	3.2*1.4*1.8m	3.8*1.8*2.1m	4.2*2*2.2m	5.2*2.2*2.4m

Small shredding machine wooden box packaging delivery, more than 1000 shredding machine container delivery.
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs?Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more?What is the approximate size of the raw material in millimeters? Describe the shape of the raw material.How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg?What is the final product? 50mm blocks or separated metal and plastic particles and so on?2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
