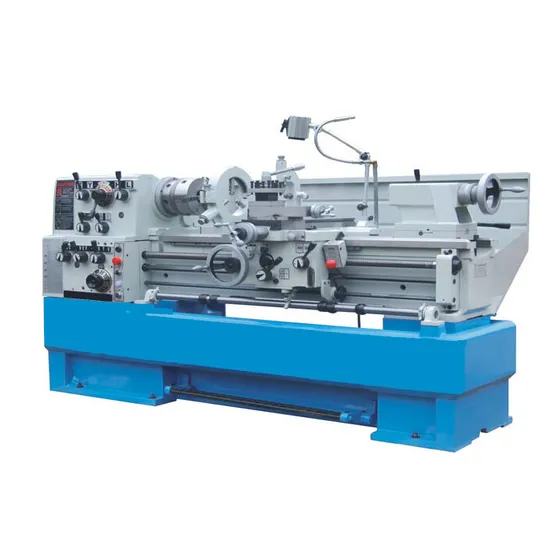

China Horizontal Gap Bed Turning Lathe Machine (C6246)
Basic Info.
Model NO.
C6246
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Tool Post
Power Source
Electric
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Lathe Machine
Swing Over Bed 410, 460mm
Swing Over Bed
460mm(18")
Swing Over Cross Slide
274mm(10-3/4")
Swing in Gap
690 mm(27-1/8")
Length of Gap
155mm(6-1/8 ")
Max.Length of Workpiece
1500mm(60 ")
Bed Width
300mm(11-13/16 ")
Spindle Bore
58mm
Max. Section of Tool
25mm×25mm
Net Weight/Gross Weight
1970/2320kg
Transport Package
Wood Case
Specification
ISO9001, CE
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
60sets/Month
Product Description
China horizontal gap bed turning lathe (C6246)1.Features:
One piece cast iron stand assure the more rigidity
Spindle bore 52mm
Horizontal type
Bed width 400mm
Swing over bed 410mm, 460mm.
Can be with CE standards
Total en-closed feed box making a wide range of threads
These lathes can satisfy the various turning requirements of very wide range of difference industries.
High speed dynamically balanced spindle,
Precision ground bed slideways, --gurantee high accuracy of the total length of machine
New type box and high precision spindle structure
2.Standard Accessories:
--3-Jaw chuck
--Sleeve and center
--Coolant system
--Footbrake system
--Footstand
--Tool box & tools 1 set
--Splash guard
--Oil tray
3.Optional Accessories:
--DRO
--Quick change tool post
--4-Jaw chuck(200mm)
--Face plate
--Steady rest
--Follow rest
--Work light
--Live center
--Drill chuck + Drill arbor
--Leadscrew cover
--Chuck cover
--Localizer
--Clutch for feed rob
--Taper turning attachment
4.Specifications for our lathe:
| (C6241/C6246) | |||||||||
| Specification | Model | ||||||||
| C6241×1000 | C6241×1500 | C6241×2000 | C6246×1000 | C6246×1500 | C6246×2000 | ||||
| Capacity | |||||||||
| Swing over bed | 410mm(16") | 460mm(18") | |||||||
| Swing over cross slide | 220mm(8-13/16") | 270mm(10-3/4") | |||||||
| Swing in gap | 640mm(25-1/8") | 690mm(27-1/8") | |||||||
| Distance between centers | 1000mm(40") | 1500mm(60") | 2000mm(80") | 1000mm(40") | 1500mm(60") | 2000mm(80") | |||
| Valid length of gap | 165mm(6-1/2") | ||||||||
| Width of bed | 300mm(11-13/16") | ||||||||
| Headstock | |||||||||
| Spindle nose | D1-6 | ||||||||
| Spindle bore | 58mm(2-1/4") | ||||||||
| Taper of spindle bore | No.6 Morse | ||||||||
| Range of spindle speed | 12 changes, 25~2000r/min | ||||||||
| Feeds and threads | |||||||||
| Max.travel of top slide | 128mm(5") | ||||||||
| Max.travel of cross slide | 285mm(11-1/4") | ||||||||
| Max.section of tool | 25×25mm(1"×1") | ||||||||
| Pitch thread of leadscrew | 6mm or 4T.P.I. | ||||||||
| Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | ||||||||
| Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | ||||||||
| Metric threads range | 41 kinds, 0.1~14mm | ||||||||
| Inch threads range | 60 kinds, 2~112T.P.I. | ||||||||
| Diametrical pitches range | 50 kinds, 4~112DP | ||||||||
| Module pitches range | 34 kinds, 0.1~7MP | ||||||||
| Tailstock | |||||||||
| Dia. of tailstock sleeve | 60mm(2-5/16") | ||||||||
| Travel of tailstock sleeve | 128mm(5") | ||||||||
| Taper of tailstock sleeve | No.4 Morse | ||||||||
| Motor | |||||||||
| Power of main motor | 5.5kW(7.5HP) 3PH | ||||||||
| Power of coolant pump | 0.1kW(1/8HP) 3PH | ||||||||
| Dimension and weight | |||||||||
| Overall dimension (L×W×H) cm | 220×108×134 | 275×108×134 | 325×108×134 | 220×108×137 | 275×108×137 | 325×108×137 | |||
| Packing size(L×W×H) cm | 225×112×162 | 280×112×156 | 330×113×156 | 225×112×162 | 280×112×156 | 330×113×156 | |||
| Net weight | 1670kg | 1920kg | 2070kg | 1720kg | 1970kg | 2120kg | |||
| Gross weight | 1980kg | 2265kg | 2450kg | 2045kg | 2330kg | 2515kg | |||
| Standard accessories | |||||||||
