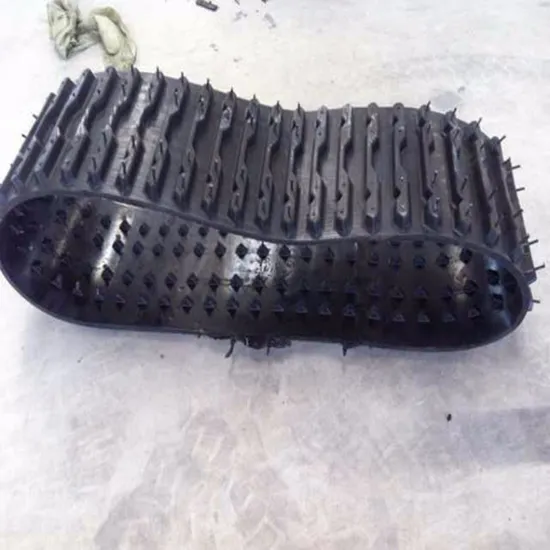

Rubber Track 380*65*46 for Agricultural Machinery Parts

Product Description

Rubber track : 380*65*46 Link No: 46 (Can Be Customized)Pitch Length: 65mmWidth: 380mmTotal Length: 2990mmWeight: 36.13KGSpecifications of the rubber track1) Made from multiple special and natural rubber2) Low noise & vibratioExcavator rubber tracks, rubber track for excavator/ digger/trucks/harvesterRubber tracks for, Kobelco, Hyundai, Hitachi, Kubota, Bobcat, TakeuchiFor excavator, digger, loader, harvester, truck, tractor1. Type of rubber tracks:1). Continuous rubber track2). Conventional type or interchangeable type rubber track3). Warranty: Guarantee one year under normal use4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle,Agriculture machinery, paver and other special machine2. The feature of rubber tracks:(1). Less round damageRubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than eitherSteel tracks of wheel products.(2). Low noiseA benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.(3). High speedRubber track permit machines to travel at a higher speed than steel tracks.(4). Less vibrationRubber tracks insulate machine and operator from vibration, extending the machine's lifetime andLowering operate fatigue.(5). Low ground pressureThe ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm,A major reason for its use on the wet and soft terrain.(6). Superior tractionThe added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of theSane weight.About Us:Our plant mainly produce Rubber Track which are specially good use for these kind of Machine:Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver, AgriculturalHarvester, Dumpers...Etc. (=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

Rubber Track	Width	Pitch Length	Link No	Length	Weight	Application
380*65*46	380mm	65mm	46	2990mm	<60kg	machines

Parameters:

Rubber Tracks Specification
Type:PY-50A	Type:PY-50B	Type:PY-60A	Type:PY-60B
Link No.54	Link No.46	Link No.66	Link No.50
Pitch:19mm	Pitch:20mm	Pitch:12.7mm	Pitch:18.5mm
Width:50mm	Width:50mm	Width:60mm	Width:60mm
Total length:1026mm	Total length:920mm	Total length:838.2mm	Total length:925mm
Weight:0.5Kg	Weight:0.5Kg	Weight:1.2Kg	Weight:0.44Kg
Type:PY-76	Type:PY-80	Type:PY-85	Type:PY-100A
Link No.120	Link No.108	Link No.24	Link No.50
Pitch:12.7mm	Pitch:15mm	Pitch:59.4mm	Pitch:40mm
Width:76mm	Width:80mm	Width:85mm	Width:100mm
Total length:1524mm	Total length:1620mm	Total length:1425.6mm	Total length:2000mm
Weight:1.92Kg	Weight:1.2Kg	Weight:1.92Kg	Weight:4Kg
Type:PY-100B	Type:PY-110	Type:PY-115	Type:PY-118A
Link No.76	Link No.32	Link No.32	Link No.18
Pitch:20mm	Pitch:42mm	Pitch:65mm	Pitch:61mm
Width:100mm	Width:110mm	Width:115mm	Width:118mm
Total length:1520mm	Total length:1344mm	Total length:2080mm	Total length:1098mm
Weight:1.84Kg	Weight:2.12Kg	Weight:Kg	Weight:2.32Kg
Type:PY-118B	Type:PY-118C	Type:PY-123	Type:PY-130
Link No.20	Link No.24	Link No.60	Link No.28
Pitch:60mm	Pitch:61mm	Pitch:40mm	Pitch:72mm
Width:118mm	Width:118mm	Width:123mm	Width:130mm
Total length:1200mm	Total length:1464mm	Total length:2400mm	Total length:2016mm
Weight:2.44Kg	Weight:3.9Kg	Weight:8Kg	Weight:11.2Kg
Type:PY-135	Type:PY-136	Type:PY-140	Type:PY-148
Link No.72	Link No.41	Link No.24	Link No.36
Pitch:18.5mm	Pitch:45mm	Pitch:80mm	Pitch:60mm
Width:135mm	Width:136mm	Width:140mm	Width:148mm
Total length:1332mm	Total length:1845mm	Total length:1920mm	Total length:2160mm
Weight:1.66Kg	Weight:3.56Kg	Weight:5Kg	Weight:16Kg
Type:PY-150	Type:PY-180	Type:PY-200	Type:PY-255A
Link No.22	Link No.42	Link No.60	Link No.30
Pitch:63.4mm	Pitch:65mm	Pitch:61.5mm	Pitch:72mm
Width:150mm	Width:180mm	Width:200mm	Width:255mm
Total length:1394.8mm	Total length:2730mm	Total length:3690mm	Total length:2160mm
Weight:3.6Kg		Weight:20Kg	Weight:12Kg
Type:PY-255B	Type:PY-300	Type:PY-320	Type:PY-350
Link No.35	Link No.58	Link No.33	Link No.53
Pitch:65mm	Pitch:109mm	Pitch:87mm	Pitch:100mm
Width:255mm	Width:300mm	Width:320mm	Width:350mm
Total length:2275mm	Total length:6322mm	Total length:2871mm	Total length:5300mm
Weight:10Kg		Weight:22Kg
Type:PY-382	Type:PY-400	Type:PY-420	Type:PY-500
Link No.54	Link No.46	Link No.58	Link No.48
Pitch:64mm	Pitch:90mm	Pitch:100mm	Pitch:63.5mm
Width:382mm	Width:400mm	Width:420mm	Width:500mm
Total length:3456mm	Total length:4140mm	Total length:5800mm	Total length:3048mm
Weight:29Kg			Weight:43.2Kg
