High Precision Fpk 4.3 Universal Tool Milling Machine with Servo-Motor From Maxnovo

Product Description

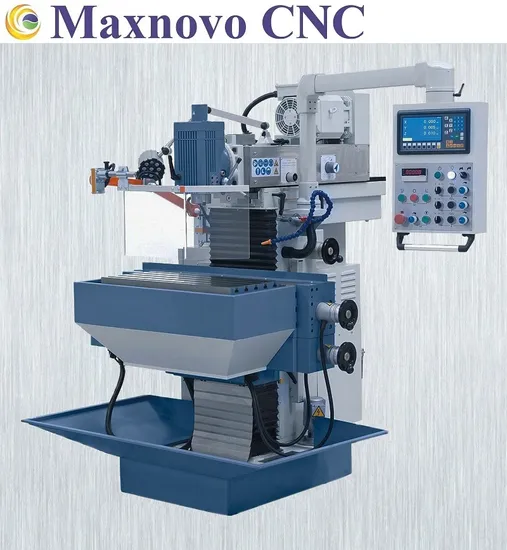

FPK 4.3 High Precision Universal Tool Milling Machine with Servo-Motor - MAXNOVO MACHINE
This kind of MM-FPK4.3 high precision universal Tool-milling Machine has Vertical and Horizontal Machining Capacity, features powerful Servo Motor drive and Preloaded Ball Screws in all three axes is designed for processing work-pieces up to 200 KGS. The compact design, which offers a lot of flexibility and at the same time is very easy to use, has proven itself many times and has been interpreted in a modern way.
Product Description
High Precision Variable Speed Universal Tool Milling Machine with Advanced Servo-Motor Drive and Preloaded Ball Screws on all Axes Perfect for Powerful Vertical and Horizontal Machining
Main Feature :
Convincing Arguments : Quality, Efficiency and Price Solid Working Table 800 X 400 mm with Maximum Loading Capacity 200 KGS Compact design with large work table and large travels for versatile use Automatic feed on all axes, infinitely variable and with fast rapid feed Vertical and Horizontal milling spindle Machine column made of premium cast-iron, ensures dynamic rigidity and constant precision High Precision preloaded ball screws on all axes Ergonomically arranged controls and a swiveling control panel for maximum operator comfort Electronic hand-wheels for manual travel in all axis Infinitely variable main spindle drive with counter gear offers wide speed range with high torque The vertical cutter head swivels and the quill can be moved manually Ball screws in all three-axis minimize play Optimal adjustments of spindle speed and feed for economic machining of various materials Swiveling mill head for horizontal milling Gear wheels saturated in oil ensure smooth operation Stepless feed settings and rapid feed in all axes, driven by advanced servo motors Rigid outer arbors for horizontal milling Central lubrication system Variable speed adjustment via frequency inverter with optimal torque and constant speed Machine body in heavy construction for vibration-free run Extensive accessory package included 3-axis Digital Position Indicator is optional Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters
Technical Data :

Product Name :	High Precision Universal Tool Milling Machine with Servo-Motor
Product Item :	MM-FPK 4.3
Working Area
Table Size :	800 X 400 mm
Table Load Capacity :	200 KGS
T-slot Size :	6 piece X 14 mm X 63 mm
Vertical Table :	1020 X 225 mm
T-slot Size (Vertical Table) :	3 piece X 14 mm X 63 mm
Travels
Travel Longitudinal (X-axis) :	500 mm
Travel Cross (Y-axis) :	400 mm
Travel Vertical (Z-axis) :	400 mm
Vertical Milling Head
Spindle Taper (Vertical) :	ISO 40
Spindle Speed (Vertical) :	40 - 2000 RPM
Vertical Head Adjustment Range :	-90 to +90 degree
Travel Pinole :	60 mm
Spindle Center - Column (min) :	165 mm
Spindle Center - Column (max) :	570 mm
Horizontal Milling Head
Spindle Taper (Horizontal) :	ISO 40
Spindle Speed (Horizontal) :	40 - 2000 RPM
Feed
Feed Speed (X/Y/Z-axis) :	10 - 1000 mm/min
Rapid Feed (X/Y/Z-axis) :	1200 mm/min
Feeding Motor (X/Y/Z-axis) :	7.7 /7.7 /10 Nm (Servo Motor)
Drive Capacity
Main Motor :	3700 W
Coolant Pump :	90 W
Gross Weight :	1650 KGS
Packing Size :	1750 X 1860 X 2100 mm
Standard Accessory :	Central Lubrication System, Coolant System, Work Lamp, Horizontal Milling Arbor, Chip Tray, Reducing Sleeves, Counterholder for Horizontal Milling, Collet chuck with Collets, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment
Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE.
The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines .
Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts.
The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards.
In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy.
Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
FAQ
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.

3. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


4. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1-- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
