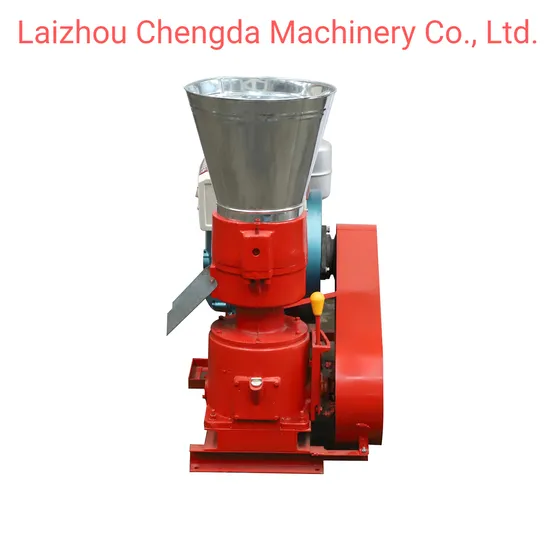

Kl120A Diesel Engine Driven Flat Die Pig Food Pellet Machine
| US$399.00-999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KL120A
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Pellet Length
Adjustable
Pellet Diameter
2.5mm to 12mm
Pellet Moisture
Below 8%
Raw Material
Below 6mm Powder State
Raw Material Moisture
8%-15%
Capacity
40-3000kg/H
Transport Package
Plywood Box
Specification
for family use
Trademark
chengda
Origin
China
HS Code
8479300000
Production Capacity
5000 Piece Per Year
Product Description
| Specifications 1.8hp KL120A diesel engine feed pellet mill 2. electric starter available 3. die diameter: 150mm 4.die 2.5mm,3mm,4mm,6mm 1. Introduction of Animal feed pellet machine/ Poultry feed pellet machine/ feed pellet mill/cattle feed pellet : Flat die pellet mill is an ideal pelletizing machine for high quality feed pellets. Before pelletizing, grains such as corn, wheat, rice and soybean etc. need to be crushed into powder. Also they should be mixed throughly with a mixer since other additives may be added to ensure a balanced feed formulation. The finished feed pellets have a smooth surface and easy to digest for animals. Therefore ring die feed pellet mill is widely adopted by livestock farm, poultry farm, feed processing industry and aquaculture. 2. Different Requirements for Animal feed pellet machine/ Poultry feed pellet machine/ feed pellet mill manufacturer : Different animals have special requirements of pellets, we have several types of die pellet mills which can respectively produce livestock feed pellets, poultry feed pellets, aquatic feed pellets, etc. We can provide the mould size: 2.5 ,3,4,5,6,8,10,12mm for choose a. For pig, the pellet diameter is usually ø3.5-6.5mm. b. For cattle, the pellet diameter is usually ø4.5-8mm. c. For chicken, pellet diameter is usually ø3.2mm. d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm. e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm. 3. Features: a. Adopt aerodynamic technology, reducing the temperature in pelletizing chamber to around 90°C, therefore the machine can work well continuously. b. Using spheroidal graphite cast iron, the machine body is more durable. c. Treated by hardness quenching and milling machine,the gears maintain high concentricity with the shaft, Thus ensuring a good performance and large capacity than belt driven models. d. With lubrication system, you can add grease to main shaft without having to turn off the machine . e. The ring die mould are cast by heat processing technology, thus having a durable life and producing qualified pellets. f.Equipped with an advanced compensation serpentine-spring coupling which connects the pelletizing chambert with the motor to increase safety and stability. g. Permanent magnet device can remove impurities in the pelletizing process. h. Multi-layer conditioners can be installed to improve quality of aquatic feed pellets 4. Unique Animal feed pellet machine/ Poultry feed pellet machine/ feed pellet mill/ cattle feed pellet : a. Unlike materials that are used to make wood pellets, grains for making feed pellets can get into the pellet machine just through gravity, thus imperative feeding device is not necessary. b. During the pelletizing process, steam should be added through the steam pipe . The steam can accelerate the ripening of materials and the finished pellets are easy to digest for animals. c. Multi-layers can be mounted to produce certain high-grade feedstuff pellets. 5. Parameters Animal feed pellet machine/ Poultry feed pellet machine/ feed pellet mill :
|
