Zl150 Dry Granulation Wet Powder Particles Adjustable Size Rotary Granulator

Product Description

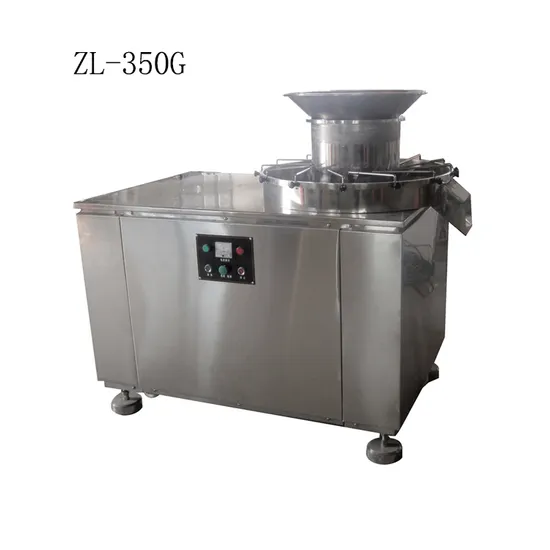

Dry granulation wet powder particles adjustable size rotary granulator
The biggest feature of this machine is that it is suitable for making granules of semi dry powder and materials with certain viscosity. It is suitable for granulation of traditional Chinese medicine granules, food, solid drinks, chicken essence and other materials with viscosity. It can also be used to crush unqualified tablets after tablet pressing, and then granulation again and continue to press tablets.
This machine is easy to operate, easy to clean and highly automatic. It is the first choice for pharmaceutical and food enterprises.
The upper part of the machine is the granulating part, which is mainly composed of cross grinding knife, screen cylinder, dust cover, etc. All parts are made of stainless steel.
The lower part of the machine is the transmission part, mainly composed of motor, cycloid pin wheel reducer, magnetic starter and button switch. The machine is easy to operate, stable in operation, easy to clean, and does not mix drugs, and the drugs are not polluted.
One sieve cylinder with the specification of φ 1.5 - φ 1.8 mm is provided. If you want special specifications, you can buy another sieve cylinder.

Model	ZL-150G	ZL-250G	ZL-350G
Motor power(KW)	1.5	3	4
Inner diameter of screen frame(mm)	150	250	350
Capacity(Traditional Chinese medicine granules)(kg/h)	80	300-400	400-600
Continuous production time(h)	Continuous	Continuous	Continuous
Minimum granulation diameter(mm)	1.2-3	1.2-3	1.2-3
Milling speed(rpm)	0-60	0-50	0-36
Dimension(cm)	700*400*700	1200*700*1100	1350*800*1200
Weight(kg)	120	400	600
