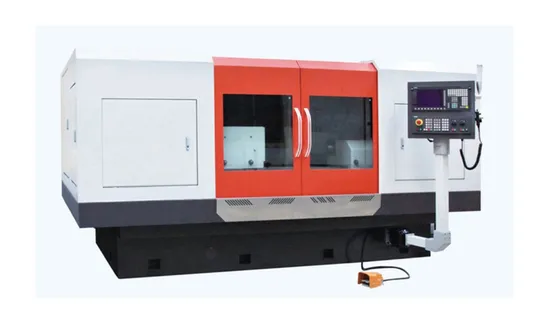

CNC cylindrical/CNC end face and cylindrical grinding machines MK1350T1/MK1650T1 Main functions and features:
1.MK1650T1 CNC (end face) cylindrical grinding machine is a large scale mobile CNC machine tool designed and manufactured by our company. This serles of machine is suitable for large scale shaft partis production in batches or mass production. It is a large scale CNC cylindrical grinding machine with easy operation, rllable performance and high machining accuracy.
2.Using Slemens 828's three axis linkage CNC system. The AC servo motor controls the headstock (C axis). the grinding wheel frame feed (X axis) and the movement of the cross slide (21 axis) respectively through a precision reducer.
3.The grinding wheel spindle adopts a high rigidity dynamic and static pressure spindle system. which has the characteristics of high rotation accuracy and strong load bearing capacity. The linear speed of the grinding wheel is up to 45m/s.
4.The headstock (C axis) is driven by a synchronous belt wheel controlled by a servo motor to ensure stable and reliable grinding. Can realize automatic loading and unloading.
5.The tailstock adopts a servo constant force automatic tightening mechanism. The tightening force is adjustable to ensure grinding accuracy,
6.Various types of diamond dressing devices can be selected for dressing of grinding wheels to realize precise dressing of complex grinding wheel shapes and automatic compensation.
7.Equipped with end face positioning and external circle online measuring instrument to ensure the dimensional stability of the workpiece.
8.Optional CNC or hydraulic drive automatic tracking center frame, used for slender shaft parts processing shaft parts processing.

Technical Parameters:

Model No.	MK1350T1	MK1650T1
Item No.
Specifications
Max.Dia to be grinded	Φ30~Φ500mm	Φ30~Φ500mm
Max.length to be grinded	1500,2000,3000 mm	1000,1500,2000,3000 mm
Center height	270 mm	270 mm
Center distance	1100,1600,2100,3100 mm	1100,1600,2100,3100 mm
Tailstock center	6#	6#
Headstock center	6#	6#
Max.workpiece weight	1000 KG	1000 KG
Wheel size	Φ750x(90-280)xΦ305 mm	Φ750x(90-280)xΦ305 mm
Linearspeed of grinding wheel	45 m/s	45 m/s
Spindle speed of grinding wheel	1146 r/min	1146 r/min
Min.pulse amount of X-axis	0.001 mm	0.001 mm
Min.pulse amount of Z-axis	0.001 mm	0.001 mm
X-axis servo motor	22,22,22,22 Nm	22,22,22,22 Nm
Z-axis servo motor	22,22,22,22 Nm	22,22,22,22 Nm
Total motor power	35 kw	35 kw
Roundness	5μm	5μm
Surface roughness	Ra0.32μm	Ra0.32μm
Dia.uniformity in the longitudinal.Section	8μm/1000mm	8μm/1000mm

Main Accessories	Extra Accessories
Grinding wheel outer circle and end face dresser	Wheel Balancing stand
Wheel flange	Anti-collision and elimination ofempty range device
Oil mist cleaner	Self-centering hydraulic center stand
Outside hydraulic tank	Open steady rest
Outer circle measuring instrument	Automatic wheel balancer
leveling wedge
Wheelwrench
Magnetic paper belt filter water tank
Special oil tank for spindle
Balance shaft
End face measuring instrument
