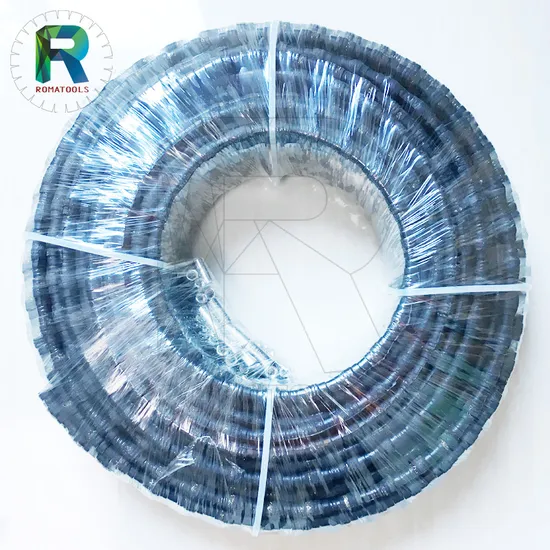

10.5mm Electroplated Diamond Wire for Reinforced Concrete Fast Cutting High Quality From Romatools

Product Description

Product Description 10.5mm Electroplated diamond wire for reinforced concrete fast cutting high quality from romatools
Application: Reinforced Concrete, Steel
Feature: Fast Cutting, Long Life, Stable Quality
We can provide different bond designs and beads sizes according to the stone types!

Romatools Diamond Wire Usage Instruction
Please read the instruction before using the wire.

Wire Connection
• Plastic reinforced wire should be twisted 1.5-2 rounds/meter
• Rubber reinforced wire should be twisted 2-3 rounds/meter.
• Use correct crimping die and ferrule.

Wire Operation
• When new wire starts to run, use less water and less wire speed to sharpen the wire until diamonds are coming out. Afterwards, the wire speed for plastic reinforced wire is suggested to be 26-31 meter/second; the wire speed for rubber reinforced wire is suggested to be 28-36 meter/second, and make sure the wire is cooled down with proper cooling water. For hard stone, wire speed should be reduced accordingly; for soft stone, wire speed should be increased accordingly.

Precaution
• Safety: It is prohibited to stand close to running diamond wire to avoid hurting people in case wire breakage.
• Storage: avoid tensioning the plastic reinforced wire while not using; avoid rubber reinforced wire being exposed to sunshine for too long and avoid wire being contaminated with oil.
• Side Wearing: increase twisting number appropriately.

Application	Diameter	Bead/ Meter	Manufacture Tech	Fixture	Line Speed	Cutting Spead	Life
	(mm)				m/s	m2/h	m2/m
Granite	6.3	37	Sintered	Plastic	Hard: 20-24 Medium: 22-26 Soft: 24-28	Hard: 0.4-0.6 Medium: 0.8-1.2 Soft: 1.2-1.8	Hard: 12-15 Medium: 20-25 Soft: 25-30
	7.3	37
	8.0	37
	8.8	37
	10.5	37
	11.5	40		Rubber	18-22,22-25,25-30	2-4,4-8,8-15	7-9,8-15,15-25
Marble	6.3	37	Sintered	Plastic	Hard: 28-32 Medium: 32-35 Soft: 30-35	Hard: 1-2 Medium: 2-3 Soft: 3-4	Hard: 20-30 Medium: 30-60 Soft: 60-80
	7.3	37
	8.0	37
	8.8	37
	10.5	37
	11.0	28		Spring	20-30,20-35,25-35	4-9,8-15,10-20	15-25,15-35,20-50
Reinforced Concrete	11.5	40	Sintered	Rubber + Spring	Concrete Strength Grade ≤ 50Mpa Diameter of the Steel Bar ≤ 50mm		1.0-3.0
Steel (Metal)	10.5	44	Vacuum Brazed		High Strength Reinforced Concrete Emergency Rescue, Very Fast Cutting		1.0-2.0
Note: Other specifications are available upon request!

Detailed Photos
Production
Application
Company Profile
Our Advantages
Packaging & Shipping
FAQ Q: Are you Factory or Trading Company?
A: We are Factory.

Q: Do you supply FREE sample?
A: Yes, but it's only for the Certified customers.

Q: What is your minimum order quantity?
A: No limited for 1st sample order, 100pcs for normal order.

Q: What's your delivery time?
A: We can finish the order within 15 days usually, 5 days for urgent order.

Q: What's your payment terms?
A: T/T, L/C, Western Union, PayPal

Q: Can we be your representative or agent in our state or country?
A: Yes, but we only think about it after 1 year cooperation.

Q: How about the shipping?
A: We shipped the sample order via DHL or FedEx, 100kgs by air, others by sea.

Q: Where is your factory?
A: Our factory is in Quanzhou, Fujian profince, Southeast of China.

Q: How can I visit your factory?
A: You can fly to Xiamen or Jinjiang airport, we will pick you up to our factory. It's about 1 hours from Xiamen, half an hour from Jinjiang.

Q: How is your quality?
A: We only use the high quality materials and very serious control systems to produce the best quality diamond tools.
