Plasma Cutter Electrodes Nozzle Tips Shield Cup for P80 Plasma Cutting

Plasma Cutter Electrodes Nozzle Tips Shield Cup for P80 Plasma Cutting

US$4.59 100 Pieces (MOQ)

Basic Info.

Model NO.
P80
Body Material
Hafnium Wire/Copper Nickel Plated
Hole Dia
1.1/ 1.3 /1.5 /1.7mm
Electricity
40/60/80/100A
1.1mm
1-6mm Cutting Thickness
1.3mm
6-12mm Cutting Thickness
1.5mm
12-20mm Cutting Thickness
1.7mm
20-40mm Cutting Thickness
Transport Package
Plastic Box
Specification
p80(10pcs)/Box
Trademark
WF
Origin
Jiangsu, China (Mainland)

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

Product Description The Electrode is made by Oxygen-free copper as the material in which there is high quality Hafnium embedded, which guarantee the best electrical conductivity and cutting dynamic energy.

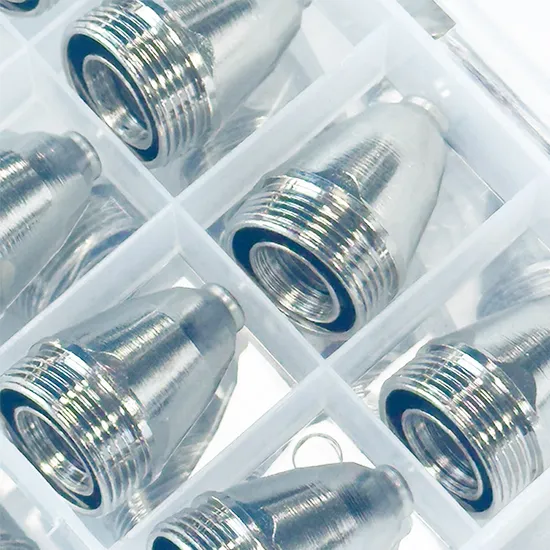

The Nozzle Shield/ Nozzle Cup is made by Hafnium wire/copper nickel plated, which brings longer life and abrasive resistance. In addition, precision-processed consumables will be combined well with cutting torch and machine.
These Torch Consumables are compatible with P80 Plasma Cutting Torch and similar copies; And it is suitable for Plasma Cutting Machine .Materials: Red copper, hafnium, ceramic
Nozzle Orifice Size: 1.1mm, 1.3mm, 1.5mm, 1.7mm
Electricity: 40A, 60A, 80A, 100A
Cutting Thickness: 1-6mm, 6-12mm, 12-20mm, 20-40mm
Hole Size(mm) Electricity Cutting Thickness
1.1mm 40A 1-6mm
1.3mm 60A 6-12mm
1.5mm 80A 12-20mm
1.7mm 100A 20-40mm
Please note: There are various orifice sizes of nozzles, please choose the appropriate orifice size according to your needs when placing an order. Electrodes and ceramic cups are all standard sizes. Detailed Photos
