Taijia ZC3-A digital schmidt rebound test hammer price test rebound hammer calibration

Product Description

Product Description

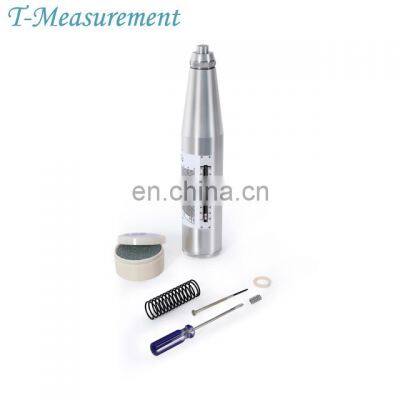

Taijia ZC3-A digital schmidt rebound test hammer price test rebound hammer calibrationProduct Description ZC3-A concrete test hammer is applied to test the compressive strength of building concrete components,bridge and so on. Standard: JGJ/T23-2011;GB /T9138-1988;JJG817-93 ; ASTM C 805 1) Center rod is made from imported material, high accuracy and durable resistance 2) The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life. 3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use lifeTechnical parametersStandard impact energy2.207±0.1J (0.225Kgf.m)The static friction of pointer slider0.65N±0.15NLength of spring stretch75±0.3mmAverage rebound hammer on steel anvil Rm80±2Measuring Range10~70MpaRadius of spherical tip25mm±1mmWorking Temperature-10℃~+50℃Working Humidity≤90%RHDimensionsΦ54x280mmNet weightAbout 1.0KgHow to workHow to work with ZC3- Concret rebound hammer1Use a grinding stone to smoothen the test surface2Perform a few test impacts with the rebound hammer on this smooth, hard surface before taking any measurements which you are going to evaluate. Perform a consistency check on the test anvil3Position the hammer perpendicular to and against the test surface. Push the concrete test hammer adainst the surface at a moderate spped until the impact is triggered. Bes aware that the plunger generates a recoil when it deploys. CalibrationRelated ProductsHT-225 Concrete Test HammerThe concrete rebound hammer are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structureZC3 Concrete Test HammerZC3 Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.TEM91 Concrete Test HammerTEM91 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data. Company ProfileDalian Taijia Technology Co.,LtdDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade Terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615998537470Skype:tmeasurement02web:/FAQ for Our Company1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all product6. Service express company:TNT/DHL/FedEX.
