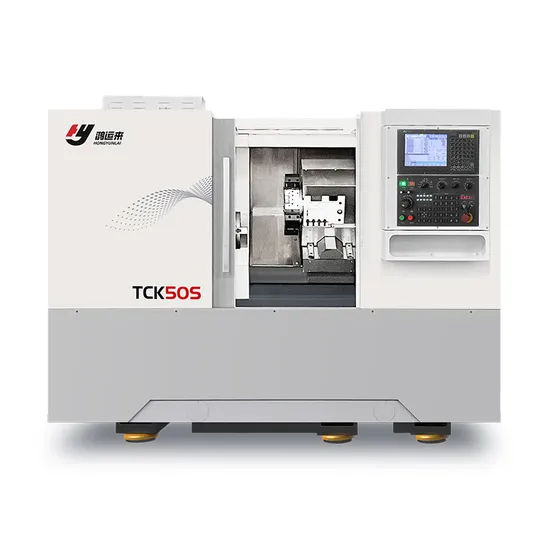

High Quality CNC Flat Bed Lathe Tck50s for Metal Cutting CNC Machine Tools

Product Description

High Quality CNC flat Bed Lathe TCK50S for Metal Cutting Cnc Machine Tools
Product Description

1. HT300 one-piece casting bed, with high tensile and shock resistance.
2. Compact structure design, small footprint, saving land cost.
3. Larger chip diameter, can achieve 500mm cutting outer diameter.
4. Adopt 12-station 125mm center height large turret, turret span is larger, single tool 12mm cutting.
5. The lathe is small, single structure is compact, the overall weight reaches 4 tons, and the cutting is more stable.
Product Parameters

item			Units	Specifications	Remarks
Maximum rotation diameter on the bed			mm	560
Maximum cutting length			mm	550
Maximum cutting diameter			mm	500	12 stations (diameter of the opposite side of the cutter head is 400, the center height of the turret is 100)
Maximum turning diameter on the slide			mm	400
Spindle end type and code				A2-6
Spindle hole diameter			mm	65
Maximum passing bar diameter			mm	50
Single spindle Headstock	Spindle speed range/spindle maximum output torque		r/min/Nm	50-4500/136
Main motor Output Power	power		kW	11/15
Standard chuck	Chuck diameter		inch	8″(optional 10″)
X-axis fast moving speed			m/min	15
Z-axis fast moving speed			m/min	15
X-axis travel			mm	280
Z-axis travel			mm	670
Standard tool holder				Horizontal 12-station servo turret
Tailstock travel			mm	600
Tailstock spindle taper			Mohs	5#
Tool size	External circular knife		mm	25×25
	Boring bar diameter		mm	φ32/φ25/φ20
	End tool holder		mm	25×25
Can I choose the knife nearby				Can
Machine gross weight		Total weight	kg
weight capacity	Disk Parts		kg	200 (including chuck and other machine tool accessories)
	Shaft parts		kg	500 (including chuck and other machine tool accessories)
Machine tool dimensions (length × width × height)			mm	3240×1940×1965	Without chip conveyor

Machine structure
1.Integrated casting bed body, resistant to tension and earthquake resistance.
2.30 ° inclined bed for more convenient chip removal.

Servo Turret
1. Standard: Horizontal 12''inch servo turret
2. Optional: Live turret
Hydraulic chuck
1.Standard: 10'' inch hydraulic chuck
2. Optional: 12'' inch
Hard rail tailstock
1. High stability,
2. Strong rigidity
3. Helps improve processing accuracy
4. Increase load capacity
5. Long service life
Company Profile

Certifications

Packaging & Shipping

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
