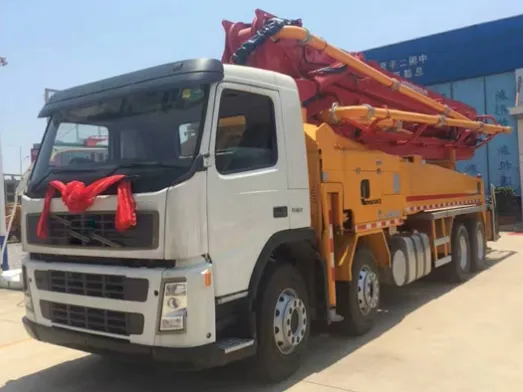

49m Brand New Concrete Pump Truck Sym5359thb 490c-10 Algeria Sale Concrete Pump
Basic Info.
Model NO.
SYM5359THB 490C-10
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Orange
Operating Weight
35000 Kg
Vertical Reach
48.6 M
Reach Depth
34.6 M
Transport Package
Nude
Specification
12380*2550*4000 mm
Trademark
Richmchn
Origin
China
HS Code
8705909100
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
11.00cm * 11.00cm * 11.00cm
Package Gross Weight
1111.000kg
Product Description
Product DescriptionDelivery pipeStraight tube, hinged elbow, and, large elbow, and small elbow all adopt the double-layer compound structure. Inner layer is extremely wear resistant, with service life hitting 50,000 m 3.Discharge port / transition bushingAdopt the double-layer compound structure, of which, the inner bushingis made of special steel whose wear resistance is 15 times that of ordinary steel, with service life hitting 60,000 to 80,000 m 3.Concrete pistonTtakes rubber as the substrate, and on its exterior layer there is compound wear-resisting fabric, which is extremely resistant to pressure, heat, and abrasion, and applicable to different severe working conditions, with service life hitting 25,000 to 30,000 m3.
Detailed Photos
Product Parameters
| Overall | Outline dimension | mm | 12380x2550x4000 |
| Oerall weight | kg | 35000 | |
| Brand | -- | | |
| Engine | Emission | -- | National VI |
| Theoretical | M³/h | 180 | |
| Pumping system | Concrete pumping pressure | Mpa | 8.3/12 |
| Theoretical pumping times | Times/min | 19/29 | |
| Delivery cylinder diameter ×stroke | mm | Φ260*1900 | |
| Placing boom | Reach height | m | 48.6 |
| Slewing radius | m | 43.6 | |
| Slewing angle | ° | 360 |
