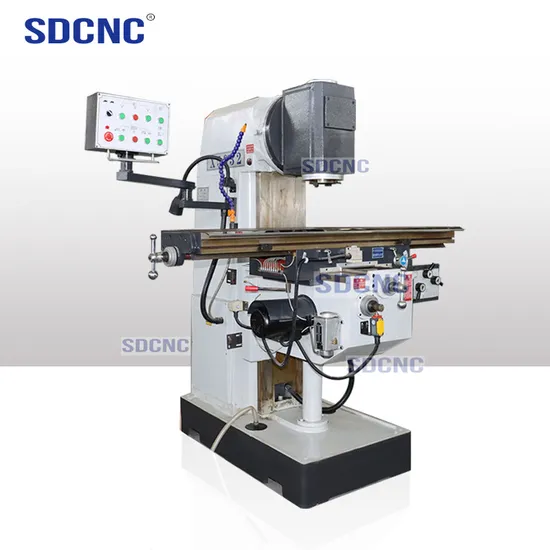

X5036 Manual Heavy Duty Large Vertical Knee Type Milling Machine

Product Description

The main performance characteristics:1. The use of the moment type of rail steel is good, strong stability2. High frequency quenching of working table and guide surface3. Working table Y, X are both gear drive automatic feed, Z for electric lift4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work
table 1300mm

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.
Product Parameters
Product main technical specifications:

Specifications	Units	X5036B
Spindle taper		7: 24 IS050
Distance between spindle nose and table	mm	60-540
Distance between spindle hole center and column surface	mm	325
Spindle speed	rpm	(12steps)60-1700
Table size	mm	1370x360
Table travel	mm	700x320 (830x320)
Motor power	kw	4/0.75/1.1/0.09
Overall dimensions(L*W*H)	mm	1700x1680x1880
Net weight/Gross weight	kg	2200/2300
