Seccionadoras Maquinaria Madera Machine PARA Fabricacion Muebles Gabinete Paneles

Product Description

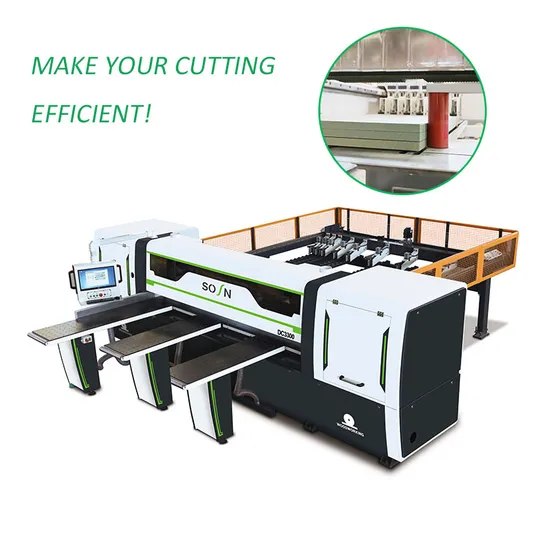

Automatic Computer beam saw machine SECCIONADORA AUTOMÁTICA CNC PARA MADERA
1). CNC computer beam saw machine
2).Main Parameter

Model number	DZ2800	DZ3300	DZ3800
Max.cutting length	2800mm	3300mm	3800mm
Max.cutting height	120mm	120mm	120mm
Min.cutting size	35*35mm	35*35mm	35*35mm
Main saw blade motor power	15kw (220v, 3 phase) 18.5kw (380v, 3 phase)	15kw (220v, 3 phase) 18.5kw (380v, 3 phase)	15kw (220v, 3 phase) 18.5kw (380v, 3 phase)
Main saw blade diameter	450mm	450mm	450mm
Main spindle diameter	75mm	75mm	75mm
Main saw blade speed	4000r/min	4000r/min	4000r/min
Scoring saw motor power	2.2kw	2.2kw	2.2kw
Scoring saw diameter	¢200mm	¢200mm	¢200mm
Scoring spindle diameter	¢50	¢50	¢50
Scoring saw speed	6000r/min	6000r/min	6000r/min
Saw carriage forward speed	100 m/min	100 m/min	100 m/min
Saw carriage backward speed	120 m/min	120 m/min	120 m/min
Pusher system drive motor	1.8kw	1.8kw	1.8kw
High pressure blower motor	3kw	3kw	3kw
Saw carriage drive motor	1.8kw	1.8kw	1.8kw
Working air pressure	6-7kg/cm2	6-7kg/cm2m2	6-7kg/cm2
Clamp number	9 groups	10 groups	11 groups
floating tables	3	3	4

3).Details pictures.
4). Loading and delivery.
--Delivery:We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.--Package:
After testing the cnc computer beam saw machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.--Guarantee:The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.--Technical support:Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.We provide English version manual and Operational video.Engineer available to service machinery overseas.--After sales services:Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
No worry for any installation or operation of this computer beam saw, we are here to help you.
Heavy duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after sale service, This machine surely can highly improve your working efficiency and precision.
Please contact me now to start your working upgrading!
No se preocupe por la instalación u operación de esta sierra de haz para computadora, estamos aquí para ayudarlo.
Marco de alta resistencia, estructura interna única, software de optimización, repuestos de primeras marcas, trabajadores de instalación profesionales, servicio intime después de la venta, esta máquina seguramente puede mejorar en gran medida su eficiencia y precisión de trabajo.
¡Por favor contácteme ahora para comenzar su actualización de trabajo!
