Misumi OEM Factory Jdb Jfb Graphite Bronze Bushing Lubrication Oil-Free Sleeve Lubricant Brass Bush Guide Bearing Self Lubricating Copper Bushing

Product Description

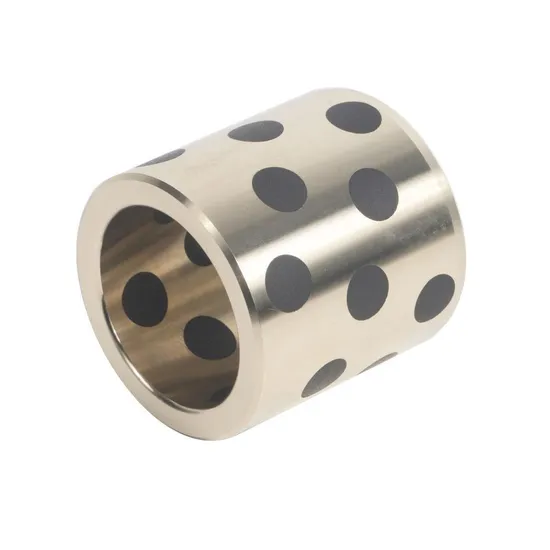

Product Description Self-lubricating Graphite Bronze Bushing Details: Bronze Graphite Plugged Bushings Oilless Bushes
Material:Bronze CuZn25Al6Fe3Mn3+graphite; Steel CuSn6Zn6Pb3 or HT-250 cast iron+graphite, CuZn24Al6 ; ZCuAl9Fe4Ni4Mn2; CuSn12; CuCr150 Type:
1.JDB Graphite Bushing (MPBZ) 2. JFB Round Flange Graphite Bushing (MPTZ) 3. MPTSZ Square Flange Graphite Bushing 4.Sheared Flange Flange Graphite Bushing(MPTNZ)
Feature: Graphite plugged tin bronze oilless bushing,Oil-free sliding bearings can be self-lubricated by design, work smoothly, reliably and without noise.Under the condition of liquid lubrication, the sliding surface is separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced. Offering Superior Performance In Hundreds Of Applications Replacing Carbon Bearings. Graphite bronze bushings is suited for Submerged and High Temperature Applications. Self Lubricating Bronze Bushings According to Client's Design, An excellent alternative to groove bronze, graphite-filled bronze provides dry lubrication in high temperatures. WHAT CAN WE SUPPLY? -----We can do Misumi OEM and provide full inspection if you required We have Bronze Bushing Graphite Bronze Bushings - Super Huge Type Bronze Bushing, Self-Lubricating Graphite Plugged Bronze Sleeve.Customized bronze bushing good quality and fast delivery.Processing Of all customization bronze parts, Plug Graphite Bearings.
Application:
used on consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,injection molders and auto molds,anti-abrasion and anti-erosion parts,light industrial machines,tools,moving belt in the drying machine,door of the fireplace,instance,on no oil parts on the building,metallurgy and transportation machines,machine tool,agricultural machinery,crane electric motor,spring pin,steering shaft and transmission etc.

MATERIAL AVAILABLE
CuZn25Al6Fe3Mn3 + Graphite	ZCuAl9Fe4Ni4Mn2 + Graphite
ZCuSn5AlPb5Zn5 + Graphite	ZCuSn10Zn2 + Graphite
HT250# Cast Iron + Graphite	CuSn6Zn6Pb3 + graphite or MOS2
CuSn12 + Graphite	CuZn25Al6Fe3Mn3 (High-stress Brass)

Kindly pls contact service ,if you have any problem, thank you!!!!!!!!!!!!!!!!!!!!
