2000ton Injection Molding Machine, Stable Quality, Competitive Cost, Save Energy, High Quality, Reasonable Price, New Machine, 10000 Grams, Big Machine

Product Description

2000ton Plastic Injection Molding Machine (Model: ZX-2000)

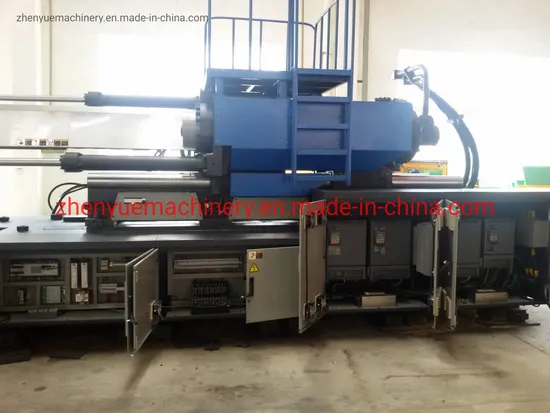

1,Photo of Plastic Injection Molding Machine


2, Technical Parameter of Plastic Injection Molding Machine

ZX-2000	Injection Unit Date		A	B	C
	Screw diameter	mm	130	140	150
	Screw L/D ratio	/	23.7	22	20.5
	Theoretical shot volume	cm3	9291	10776	12370
	Shot weight(PS)	g	8548	9914	11380
	Injection rate	g/s	1194	1385	1590
	Max.screw speed	rpm	90
	Clamping Unit
	Clamping force	KN	20000
	Toggle stroke	mm	1550
	Space bettween tie bars	mm	1610x1460
	Min.mold thickness	mm	700
	Max.mold thickness	mm	1600
	Hydraulic ejection stroke	mm	405
	Hydraulic ejection force	KN	352
	Others
	Hydraulic system pressure	Mpa	16
	Pump motor	kw	35+35+35+35
	Heating capacity	kw	80
	Oil tank capacity	L	2800
	Machine dimensions	m	16x3.8x3.5
	Machine weight	Ton	115

3, Platen Dimension of Plastic Injection Molding Machine
4, Dimension of of Plastic Injection Molding Machine (ZX-2000)
5, Technical Characteristics
of Plastic Injection Molding Machine

CLAMPING SYSTEM	-FEA designed double-toggle five-joint clamping machinery -High rigidity platen with enlarged space between tie-bar -Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould -Optimized lubrication system ensuring precision clamping and extending the life time of the clamping
INJECTION SYSTEM	-Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately -High speed and high pressure adopt special injection design, improving injection speed -Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding
HYDRAULIC SYSTEM	-Adopt the imported pump, low noise, long lifetime, stable performance -High performance hydraulic valve, less failure, fast switch, convenient maintenance -Low pressure mould protect system, which is more suitable for the precision mould -Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

6, Manufacturer of Plastic Injection Molding Machine
7, Contact Information
Contact Person: Mr. Tony
Mobile : +86 13656841356
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Production: Plastic Injection Molding Machine
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
