Z5150 Vertical Drilling Machine Series

Product Description

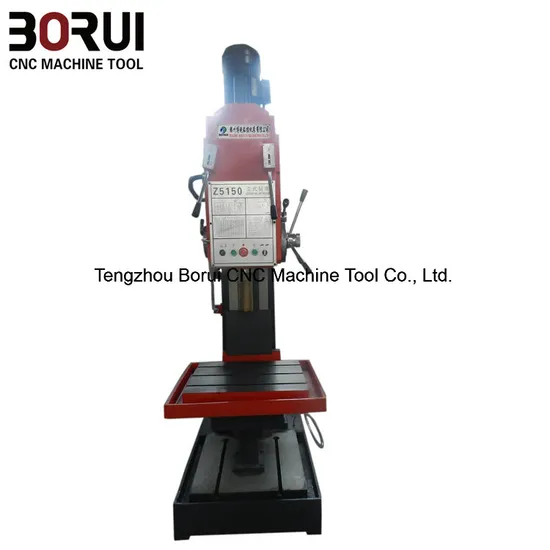

Z5150 vertical drilling machine series
Product Application 1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
The main specification :

Specification	Units	Z5150A	Z5150B
Max. drilling diameter	mm	50	50
Spindle taper	morse	5	5
Spindle travel	mm	250	250
Spindle box travel	mm	200	200
Number of spindle speeds	step	12	12
Range of spindle speeds	r/min	31.5-1400	31.5-1400
Number of spindle feeds	step	9	9
Range of spindle feeds	mm/r	0.056-1.80	0.056-1.80
Table size	mm	560×480	800×320
Longitudinal (cross) travel	mm	/	450/300
Vertical travel	mm	300	300
Max.distance between spindle and table surface	mm	750	750
Motor power	kw	3	3
Overall dimension	mm	1090×905×2465	1300×1200×2465
Machine weight	kg	1250	1350

Standard accessories:
1.Drilling chuck
2.Taper shank jaw
3.Taper shank joint
4.Spanner
Optional accessories :
1.angle vice
2.safety guard
The main feature :
1.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
2. Applicable to the work of the drilling expansion,
3. Rigid Tool strong, stable and high accuracy.
4. Bed resin sand casting process.
5.The gear adopts nitriding process, prolong the service life.
Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
