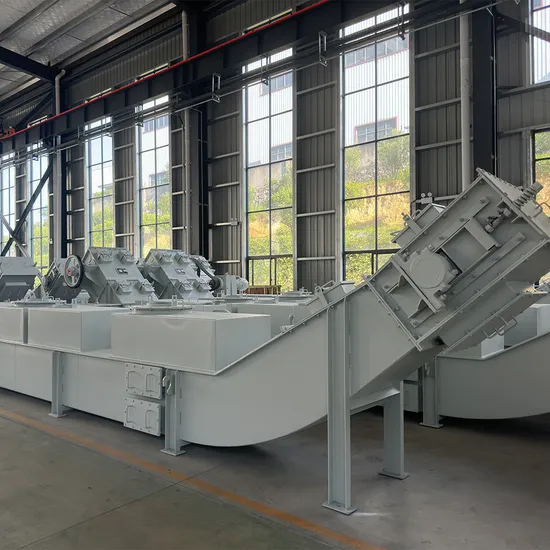

Chinese Patented Industrial Super Heat Resistant Chain Scraper Conveyor

Product Description

Product Description Scraper Chain Conveyor is specially designed for convey high temperature material. The heat resistant steel as the main parts make it handle high temperature big bulk density materials, which the max. temperature can reach to 1200ºC. This model be widely used for boiler slag, pyrite slag, zinc ash, copper smelting dust, steel smelting dust and other high temperature & high grinding materials in metallurgy and chemical industries. The trough width can be 800mm, max capacity is 100m³/h., max conveying distance can be 70m, Installation angle can reach to 35°, also it can be loaded and unloaded on multiple points.

Technical parameters of Scraper Chain Conveyor
Model	MSR20	MSR25	MSR32	MSR40	MSR50	MSR63	MSR80	MSR100
Trough Width(mm)	200	250	315	400	500	630	800	1000
Load-bearing Depth(mm)	80	100		120	150			160
Chain Speed(m/s)	0.06~0.12		0.08~0.16		0.08~0.16
Capacity(t/h)	3~6	4.5~9	6~13	12.5~18.5	19~38	24~48	30~60	40~75
Max Conveying Length(m)	60			50	45		35	30
Power(kw)	11	11	18.5	5.5~18.5	45	45	45	55

Main Features 1) Simple structure and easy in installation and maintenance.
2) Specially design for convey high temperature material. choose heat resistant steel as the main parts.
3) Can handle high temperature big bulk density materials, which the max. temperature can reach to 1200ºC.
4) Multiple points of load and unload.5) Improve worker's labor condition notably and prevent environment.6) Be widely used in in metallurgy and chemical industries.
Packaging & Shipping
Related Products Certifications
Company Profile HU BEI TIANYI MACHINERY CO., LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprise, which specialized in designing & producing & installing the specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province; it is only 50 kilometers far from the Three Gorges Dam &20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital asset reaches nearly 89 million and we have 200 staffs, including 65 professional engineers. Our main fields: smelting, thermal power industry, waste disposal and building materials industry. Our main products: conveying equipment, crushing equipment, screening equipment and dust removal equipment. Integrated system: material conveyor system and dust removal system.
