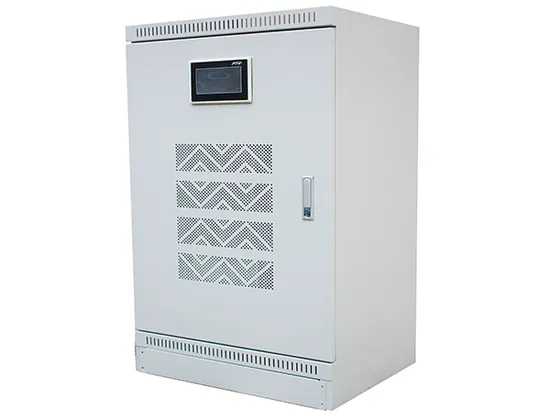

Bcce-Vss (D) Series Regulator

Product Description

The intelligent contactless compensation AC voltage regulator is a new generation of fast voltage stabilizer, which has been successfully developed for many years on the basis of the production of compensable power voltage stabilizing equipment.
Product description
It uses the latest 32BIT operation processor control technology, fast pure hardware true value 12 Bit voltage sampling technology, voltage / current zero crossing switching technology and unique coding fast contactless compensation voltage regulation technology, which combines intelligent instrument, fast voltage regulator and fault diagnosis together to make the product safe, efficient and precise. The voltage regulation accuracy is adjustable (voltage tolerance), which is convenient for all kinds of complex application environments. Output voltage real-time waveform monitoring, we can see at a glance how the power supply quality of the grid is very convenient. The products are widely used in industrial, transportation, post and telecommunications, national defense, railway, scientific research and other fields of large-scale mechanical and electrical equipment, metal processing equipment, production lines, elevators, medical instruments, embroidery light spinning equipment, air conditioning, radio and television, household appliances and building lighting, such as the need for stable voltage.

Quick Response	12 high-speed AD acquisition, weekly wave acquisition 128 points, 32BIT processor for digital processing, electronic module quick compensation.
Arrange Mode	Voltage division: three phase voltages are independently adjusted to ensure that the three phase voltages are within the accuracy range.
Advanced Measurement Technology	12 bit AD acquisition, 32BIT processor for digital filtering and true RMS calculation.
Zero Crossing Detection	Voltage zero crossing and current zero crossing detection are realized, and no contact switch is switched to zero.
Control Precision	Perfect matching of large scale programmable logic device and single chip microcomputer
Humanized Interface	Through operation panel touch key, various indicators can be set (output voltage, voltage precision, protection function).
Output Waveform Without Distortion	Contactless zero switch switching, the same frequency, phase locking, sine wave superposition compensation principle
Resistance to Harmonic Interference	True RMS voltage detection
Wide Range of Load	Resistance, capacitive, emotional load can all be adapted to
Impact Resistance	Adaption to arbitrary load start
Protection Function	In the case of overvoltage and undervoltage, it can be protected or automatically converted to bypass work in 1 second, and has perfect function of phase, overload, short circuit protection and sound and light alarm after failure.
Voltage and Current Display	LCD liquid crystal display with true value of voltage and current respectively
Fault Status Display	Detailed display of various fault states, fault status at a glance

Del	Rated capacity (KVA)	Output current (A)	Input voltage (V)	output voltage(V)	Phase number	Pressure resistance(V)	insulation resistance(MΩ)	efficiency	Waveform distortion	working frequency(HZ)	stabilized voltage precision	response time
BCCE-VSS-10	10	15	304~456	380±1-5%Can be set	Three-phase	2000/No breakdown for 1 minutes	≥2	≥98%	≤0.1%	50~60	±1%	≤20MS
BCCE- VSS-20	20	30
BCCE-VSS-30	30	46
BCCE-VSS-50	50	76
BCCE-VSS-60	60	91
BCCE-VSS-80	80	122
BCCE-VSS-100	100	152
BCCE-VSS-120	120	182
BCCE-VSS-150	150	228
BCCE-VSS-180	180	273
BCCE-VSS-200	200	304
BCCE-VSS-250	250	380
BCCE-VSS-300	300	456
BCCE-VSS-400	400	608
BCCE-VSS-500	500	760
BCCE-VSS-600	600	912
BCCE-VSS-800	800	1216
BCCE-VSS-1000	1000	1519
BCCE-VSS-1200	1200	1823
BCCE-VSS-1600	1600	2431
BCCE-VSS-2000	2000	3039
BCCE-VSD-3	3	14		220±5%Can be set	Single-phase
BCCE-VSD-5	5	23
BCCE-VSD-10	10	45
BCCE-VSD-20	20	91
BCCE-VSD-30	30	136
BCCE-VSD-50	50	227
BCCE-VSD-100	100	455

Major Function:

Transport enter	Stabilizer Range	Three phase 380V + 15% to + 40%, single phase 220V + 15% to + 40% can be selected.
	Frequency	47Hz-63Hz
Transport Out of	Rated Voltage	Phase voltage 220V, line voltage 380V (other voltage can be set. For example, 400V and so on.
	Stabilized Voltage Precision	±1%
	Response Time	Fast (20ms)
	Waveform Distortion	No additional waveform distortion (static)
	Efficiency	≥98%
	Three Phase Imbalances	Automatic balance of three-phase voltage
	Delay Output	First stabilizer and re output (protection equipment is not impacted)
	Overvoltage	Output phase voltage exceeds 10%, cut off output or uninterrupted bypass.
Protect	Undervoltage	Output phase voltage below 10%, cut off output or continuous bypass bypass.
	Phase Deficiency	Have (automatically cut off)
	Overload	Electronic detection, overloading in 3 minutes to cut off the output
	Overflow	Double protection of electronic detection and circuit breaker
	Short Circuit	Double protection of electronic detection and circuit breaker
	Bypass	Uninterrupted automatic bypass
	Voltage	A, B, C, and sigma ABC have three RMS LCD liquid crystal display respectively.
Finger show	Electric current	A, B, C, and sigma ABC have three RMS LCD liquid crystal display respectively.
	Working Condition	Steady state / direct state
	Abnormal	Overvoltage, undervoltage, overload, fuse break
Color touch screen man-machine interface		Intelligent man-machine interface operation panel, easy to set up inquiries of various parameters, and can lock the machine within the specified time.
Operation mode		Two modes of work with steady pressure and straight through
Overload capacity		5 times the rated current for 1 seconds

Interface:
BCCE-VS series intelligent contactless compensation AC voltage regulator industry first uses seven inch touch screen LCD LCD display, and can display voltage, current, fault state and working mode intuitively through LCD LCD screen. Its voltage regulation precision, output voltage, working mode, locking machine can be set by the panel, and the operation is simple, easy to understand and realize one key operation.


1.1 click 1 to enter the figure 3 parameter view interface
1.2 click 2 to enter the detailed display interface of Figure 2
1.3 click 3 to enter version information
1.4 display A phase output voltage
1.5 display B phase output voltage
1.6 display C phase output voltage
1.7 display A phase current
1.8 display B phase current
1.9 display C phase current
1.10 shows the regulator value, you can click the enter dialog box to set the required stable voltage value.
1.11 shows the accuracy of voltage regulation tolerance, you can click the enter dialog box to set the required voltage regulation accuracy.
1.12 display the change of the output voltage waveform
1.13 shows whether it is straight through, red is straight, and green is normal.

2.1 display A phase input voltage
2.2 display B phase input voltage
2.3 display C phase input voltage
2.4 display A phase output voltage
2.5 display B phase output voltage
2.6 display C phase output voltage
2.7 display AB phase output voltage
2.8 display BC phase output voltage
2.9 display CA phase output voltage
2.10 display A phase current
2.11 display B phase current
2.12 display C phase current
2.13 over voltage indication, green is normal and red is undervoltage.
2.14 overload indication, green is normal, red is overload.
2.15 over temperature indicates that green is normal and red is over temperature.
2.16 lack of phase indicates that green is normal and red is absent.
2.17 A phase insurance indicates that green is normal and red is broken.
2.18 B phase insurance indicates that green is normal and red is broken.
2.19 C phase insurance indicates that green is normal and red is broken.

3.1 display the overload current value of the machine
3.2 display machine undervoltage protection value
3.3 display the overvoltage protection value of the machine
3.4 display machine overload delay action time
3.5 display machine overvoltage drought action time
3.5 alarm switch that can be closed or open
Shape size and weight:

Phase number	Capacity (KVA)	Length * width * height (mm)	base	Number of cabinets	Weight (KG)
Three-phase	10	850*400*840	850*400	Single cabinet	130
	20				138
	30				146
	50				175
	60				175
	80	900*500*1010	900*500		223
	100				250
	120				300
	150	850*850*1400	850*850		400
	180				450
	200				550
	250	1100*900*1600	1100*900		600
	300				700
	400				800
	500	1300*1000*1800	1300*1000		900
	600				1100
	800				1300
	1000	1500*1100*1800	1500*1100		1500
	1200				1750
	1600	1800*1200*2000	1800*1200		1900
	2000				2200
