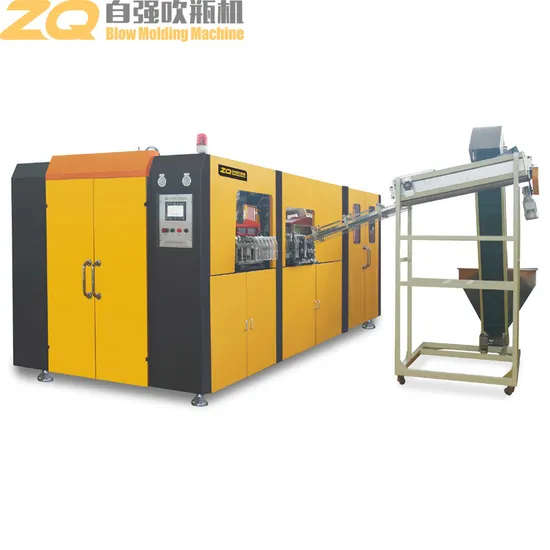

Plastic Pet Bottle Blow Moulding Machine (ZQ-B600-6)

Product Description

Plastic PET bottle blow moulding machine ZQ-B600-6
High Speed: 8000bottles/hour, Max volume: 600ml
ZQ-B600-6 full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L and 1.5L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Plastic PET bottle blow moulding machine.
Advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity)
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Plastic PET Bottle Blow Moulding Machine,equipment information.

TYPE	ITEM	ZQ-B600-4	ZQ-B600-6	ZQ-B600-8
CONTAINER	Number of cavity	4 cavities	6 cavities	8 cavities
	Output	5500-6000 pcs/hr	7000-8000 pcs/hr	9000-11000 pcs/hr
	Max.container volume	0.6L	0.6L	0.6L
	Max.neck diameter	38mm	28-30mm	28-30mm
	Max.container diameter	65mm	60mm	60mm
	Max.container height	230mm	260mm	260mm
ELECTRICAL SYSTEM	Number of lamp	35pcs	56pcs	48pcs
	Max.heating power	32kw	34kw	48kw
	Installation power	32kw	48kw	56kw
	Actual power consumption	22kw	24kw	45kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-8kg/cm²	7-8kg/cm²
	Low pressure consuming	1600Ltr/min	1600Ltr/min	2000Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	2200-2500 Ltr/min	2000-2200 Ltr/min	2300-2500 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC	10°C
	Consuming	5600kcal/hr	8000kcal/hr	8000kcal/hr
	Flow rater	30Ltr/min	88Ltr/min	200Ltr/min
MACHINE	Machine dimension	3.7x1.95x2.1(m)	5.0x2.1x2.1(m)	6.9x2.2x2.1(m)
	Machine weight	3.7ton	5.0ton	6.5ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
