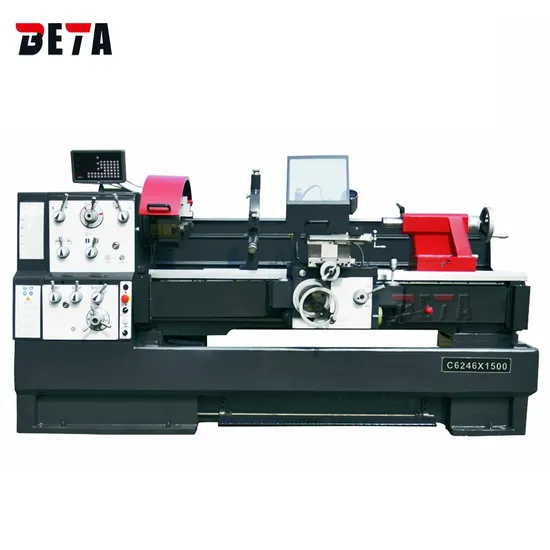

C6246 China Manual Gap Bed Metal Cutting Lathe
Basic Info.
Model NO.
C6246
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Cheap Price C6246 1500mm Center Turning Lathe Mach
Max.Swing Over Bed
460mm
Distance Between Centers
1000/1500/2000mm
Tool Post Type
4-Way Toolpost
Spindle Motor
5.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
1 Month
Spindle Bore
58mm
Width of Bed
300mm
Spindle Nose
D1-6
Spindl Speed
25-2000rpm
Key Word
Universal Lathe
Control
Manual Lathe
Transport Package
Wooden Case
Specification
C6246 China manual gap bed metal cutting lathe
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
275.00cm * 112.00cm * 162.00cm
Package Gross Weight
2050.000kg
Product Description
C6246 China manual gap bed metal cutting latheFeatures:
1.The spindle system is high in rigidity and accuracy.
2.The design of the main drive is optimized and the gears in the headstock are precision ground.
3.The noise of the machine is low.
4.The lathe machine can turn about 200 kinds of metric, inch, module and D.P. threads.
5. Automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.
| Model | C6246x1000/1500/2000mm | |
| Max. swing over bed | Φ460mm | |
| Max. swing over cross slide | Φ270mm | |
| Max. swing over gap | Φ690mm | |
| Valid length of gap | 165mm | |
| Distance between centers | 1500mm/2000mm | |
| Width of bed | 300mm | |
| Max.section of tool | 25×25mm | |
| Cross slide travel | 285mm | |
| Spindle bore | Φ58mm | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | MT7 | |
| Range of spindle speed | 12 steps 25-2000r/min | |
| Leadscrew pitch | 6 mm or 4T.P.I. | |
| Range of metric longitudinal feeds range | 0.031-1.7mm/rev (42 kinds) | |
| Range of inch longitudinal feeds | 0.0011"-0.0633"/rev (42 kinds) | |
| Range of metric cross feeds | 0.014-0.784mm/rev (42 kinds) | |
| Range of inch cross feeds | 0.00033"-0.01837"/rev (42 kinds) | |
| Range of metric threads | 0.1-14mm (41 kinds) | |
| Range of inch threads | 2-112 T.P.I.(60 kinds) | |
| Range of Diametrical pitch | 4-112 D.P. (50 kinds) | |
| Range of module pitches | 0.1-7 M.P.(34 kinds) | |
| Dia. of tailstock sleeve | 60mm | |
| Travel of tailstock sleeve | 130mm | |
| Morse taper of tailstock sleeve | MT4 | |
| Power of main motor | 5.5kw | |
| Power of coolant pump | 0.1kw/ 3PH | |
| Overall diamension(L*W*H) | (1500mm): 2750x1080x1370mm | |
| (2000mm): 3250x1080x1370mm | ||
| Packing size(L*W*H) | (1500mm):2800x1120x1620mm | |
| (2000mm): 3300x1130x1560mm | ||
| N.W/G.W | (1500mm): 1810/2115kg | |
| (2000mm): 1965/2295kg | ||
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units. Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
