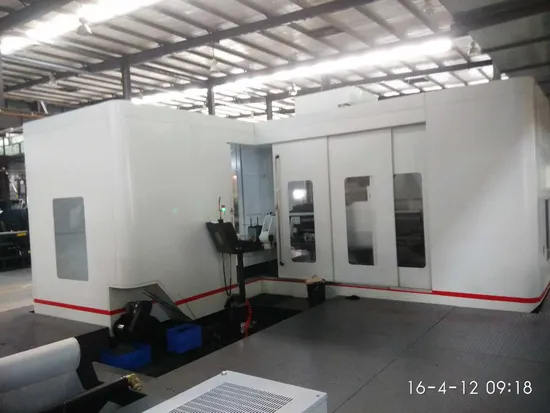

6 Axis CNC Deep Hole Boring Machine with CE Certificate

6 Axis CNC Deep Hole Boring Machine with CE Certificate

US$160,000.00-180,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZJR10-1210
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max.Loading Capacity
5 Ton
Depth
1000mm
Diameter
3mm-30mm
Transport Package
Wooden Box
Specification
CE, GS, ISO9001
Trademark
zonjet
Origin
Guangdong, China
HS Code
8459210000
Production Capacity
60PCS/Year

Product Description

ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance.
3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process.
Technical Specifications of
ZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool
Items ZJR10-1210

Processing Capacity

Diameter of the hole for gun drill

φ3~φ30 mm

Maximum depth of the hole for gun drill

1000 mm

Processing Travel
(X)
Processing travel(from left to right)of the working table

1200 mm
(Y)
Processing travel of sliding table

1000 mm
(Z)
Processing travel of column
500 mm
(A)
The rotary angle of ram
15 , 25
The spindle turns upward 15 degrees, and down to 25 degrees
(B)
Rotation angle
360 (, 15 )
360 degrees(servo control, indexing accuracy 15 seconds)

Spindle

Taper hole of spindle
BT40

Maximum speed of spindle
4500 rpm

Power

Spindle motor
7.5 KW/11 KW
X
X axis servo motor
30 N.m
Y
Y axis servo motor
30 N.m
Z
Z axis servo motor
30 N.m
W
W axis servo motor
12 N.m
A
A axis servo motor
30 N.m
B
B axis servo motor
30 N.m

Total power
40 KW

CNC Index

Maximum loading capacity
5 ton

Due to the continuous improvement of products, specifications and pictures are for reference only. For details, please visit our website: http://zonjet.en.made-in-china.com
