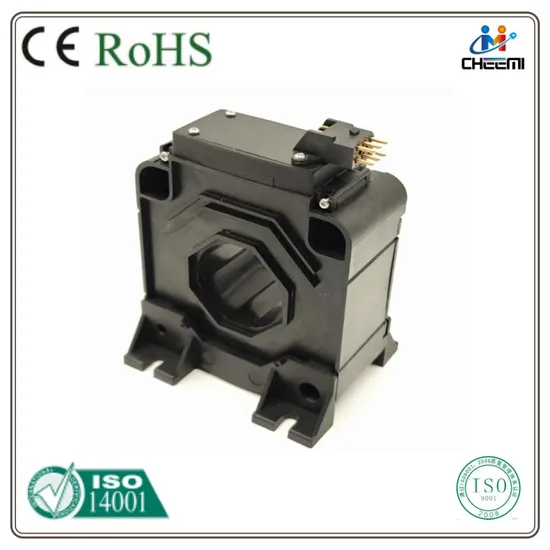

1000A Linearity of The Output High Overload Capacity Current Transducer Iris ISO22163 Certificated Hallcurrent Sensor

Product Description

Advantages* High accuracy
* Very good linearity
* Easy installation
* Can be customized
* Low temperature drift
* Optimized response time
* High immunity to external interference Applications* AC variable speed drives and servo motor drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for Railway transitSpecification

Electrical data:(Ta=25ºC,Vc= ±15VDC)
Parmeter Ref	CHB1000LTC15D250SFC/SP2	CHB1000LTC15D200SFC/SP2
Rated input Ipn(A)	1000	1000
Measuring range Ip(A)	0~±3000	0~±2400
Turns ratio Np/NS (T)	1:4000	1:5000
Output current rms IS(mA)	Ip/Ns	Ip/Ns
Secondary coil resistance RS (Ω)	26	45
Inside resistance RM (Ω)
Supply voltage VC(V)	(±15~±24) ±5%
Accuracy XG(%)	@IPN,T=25°C < ±0.4
Offset current IOE(mA)	@IP=0,T=25°C < ±0.5
Temperature variation of IOE IOT(mA/°C)	@IP=0,-40 ~ +85°C < ±0.5
Linearity error εr(%FS)	< 0.1
Di/dt(A/µs)	> 100
Response time tra(µs)	@90% of IPN < 1.0
Power consumption IC(mA)	<32+Is
Bandwidth BW(KHZ)	@-1dB, IPN DC-100
Insulation voltage Vd(KV)	@50/60Hz, 1min,AC 10.0

General data:
Parameter	Value
Operating temperature TA(°C)	-50~ +85
Storage temperature TS(°C )	-55~ +90
Plastic material	PBT G30/G15, UL94- V0;
Standards	IEC60950-1:2001
	EN50178:1998
	SJ20790-2000

Dimensions(mm):
	Connection
	General tolerance
	General tolerance:< ±0.5mm Primary through-hole:42mm Through-hole clamp(bus bar): 40*8mm Connection of Secondary : SMS6GE6
