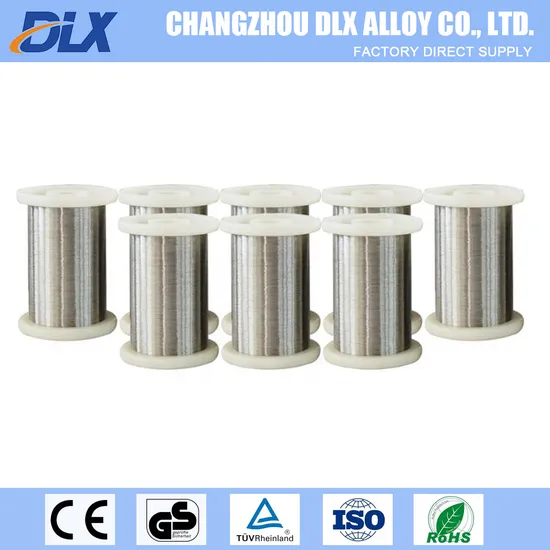

28AWG 0.32mm 32AWG 0.20mm Electrical Heating Resistance Nichrome 80 Nickel Chrome Alloy Ni80cr20 Nicr 80/20 Wire

Product Description

Product Description 28AWG 0.32mm 32AWG 0.20mm Electrical Heating Resistance Nichrome 80 Nickel Chrome Alloy Ni80cr20 Nicr 80/20 Wire
Cr20Ni80 has excellent comprehensive properties. High-quality heating elements will choose Cr20Ni80. Cr20Ni80 has the advantages of good oxygen resistance, high strength, non-magnetic, high emissivity, good corrosion resistance, no softening, no deformation, and low permanent elongation.
Nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr10Ni90 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components. Typical Mechanical properties(1.0mm)
Elongation: 30% Yield Strength: 420Mpa Tensile Strength: 810Mpa

Performance\ material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
	Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperatureºC		1300	1200	1250	1150	1100	1100
Meltiing point ºC		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity at 20ºC((μΩ·m)			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat J/g.ºC			0.44	0.461	0.494	0.5	0.5
Thermal conductivity KJ/m.hºC			60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion a×10-6/ (20~1000ºC)			18	17	17	19	19
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Non-magnetic	Non-magnetic	Non-magnetic	Weak magnetic	Weak magnetic

Resistance Wires
RW30	W.Nr 1.4864	Nickel 37%, Chrome 18%, Iron 45%
RW41	UNS N07041	Nickel 50%, Chrome 19%, Cobalt 11%, Molybdenum 10%, Titanium 3%
RW45	W.Nr 2.0842	Nickel 45%, Copper 55%
RW60	W.Nr 2.4867	Nickel 60%, Chrome 16%, Iron 24%
RW60	UNS NO6004	Nickel 60%, Chrome 16%, Iron 24%
RW80	W.Nr 2.4869	Nickel 80%, Chrome 20%
RW80	UNS NO6003	Nickel 80%, Chrome 20%
RW125	W.Nr 1.4725	Iron BAL, Chrome 19%, Aluminium 3%
RW145	W.Nr 1.4767	Iron BAL, Chrome 20%, Aluminium 5%
RW155		Iron BAL, Chrome 27%, Aluminium 7%, Molybdenum 2%
