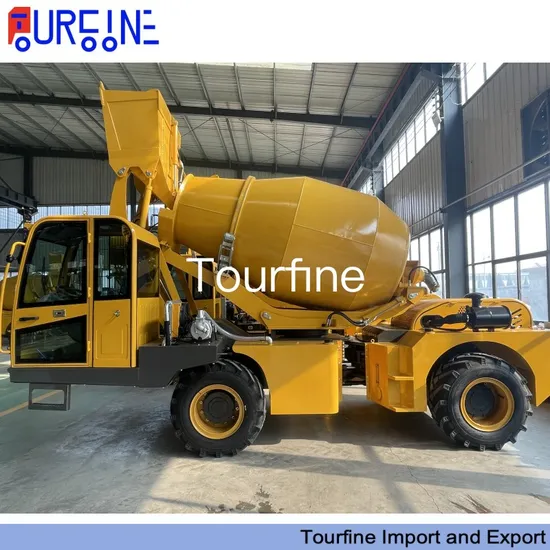

3.5cbm Self Loading Concrete Mixer Truck TF350 for Efficient Mixing

Product Description

Product Description
1. Unrivaled Advantages of Our Concrete Mixer * Pricing Options: FOB, CNF/CFR, CIF
* Certifications: CE, ISO - Assured Quality
* Swift Delivery: 15-20 Days
* Outstanding After-Sales Support and Tailored Customization.
2.Product Overview
The self-loading concrete mixer seamlessly blends the functions of a concrete mixer truck and a cement mixer. This ingenious machine autonomously handles feeding, measuring, mixing, and discharging concrete mixtures. With its robust engine and agile 4-wheel steering, it resembles a compact vehicle, allowing the operator to navigate effortlessly to the required location. Loading materials such as cement, aggregates, and stones becomes utterly convenient as the raw materials are spread across the construction site. This innovative self-loading mixer machine eliminates the hassle of raw material transport. This high-efficiency self-loading concrete machine requires only a single operator to drive, load, and mix raw materials on the move. Delivering superior working efficiency and exceptional mixing effects, it significantly reduces labor costs and saves precious working hours. The self-loading concrete mixers offer substantial benefits and advantages over traditional mobile concrete mixers and cement mixer trucks.
3. Key Features 1) The self-mixing concrete truck excels in automatic feeding, measuring, mixing, and discharging of concrete.
2) Enjoy easy operation and remarkably high working efficiency with our self-loading mixer for sale, delivering superior mixing effects.
3) Equipped with an independent water supply system, it ensures the production of high-quality concrete every time.
4) Requires just one operator to efficiently drive, load, and mix raw materials while in motion. 4. Technical Specifications

Performance	Model	HY350
	Total Weight	KG		8000
	Driver Type			4*4
	Wheel Base	mm		1960
	Tyre			16/70-20
	Speed	KM/H		25
	Gradeability	°		30
	Overall Size	(L*W*H)mm		7609x2360x4378mm
	Loading Bucket Capacity	m³		0.6
	Weighing Mode			Electric-hydraulic Weighing System
	Mixing Speed	rpm		0-13
	Mixing Mode			Driven by hydraulic motor
	Water Supply Form			Self-contained water supply system (24V electronically controlled automatic watering system)
	Fuel Tank Capacity	L		147
Engine	Brand	YUCHAI, YCD4J22T, (CUMMI Engine is optional)
	Power	85kw@2400 rpm
	Engine Type	4-Cylinder, 4-Stroke, In-line, Water-cooled and Turbocharged
Transmission System	Gearbox	YJ280 Torque Converter(Split Type)
Driving System	Drive Axle	15 Ton Payload, large-hub reduction axle with explosion- proof function
	Brake Form	Air Brake
	Drive Mode	Four Wheel Drive
	Maximum Speed	20km/h
	Minimum Turning Radius	4000mm
Swing System	Geometric Volume	m³	5.3
	Swing Volume	m³	3.5
	Residual Volume	<0.8%
	Hydraulic System	Made In Korea
	Swing Reducer	3.5 M3 For Hongyuan OEM
	Water Tan Volume	L	2x300
	Water Supply Model	By Hydraulic Water Pump

Detailed Photos
FAQ
Product Description Welcome to Beijing Tourfine Import and Export Co. Ltd! We are pleased to introduce our high-quality products and exceptional services to meet your needs. Here are some key details about our offerings:
MOQ: Our minimum order quantity is one unit, allowing you to conveniently purchase the quantity you require. Payment Terms: We accept T/T (Telegraphic Transfer) or LC (Letter of Credit) as secure payment methods. After Sales Service: We are committed to providing excellent after-sales support. Our technical team is available to offer assistance, and we ensure the availability of spare parts for the long lifespan of our products. Spare parts can be conveniently delivered to you via DHL, ***, UPS, or FedEx. Shipping Method: We offer various shipping methods, including container, flat rack container, Roro vessel, and bulk vessel, to ensure safe and efficient delivery of your order. Delivery Time: Depending on the product, our delivery time ranges from 7 days to 60 days after receiving the deposit. We strive to deliver your order promptly. Special Requirements: We are dedicated to meeting your specific requirements. Our team can manufacture trailers and trucks according to your unique specifications. Spare Parts Quality: We guarantee the quality of our spare parts, ensuring that they meet your expectations. Thank you for considering Beijing Tourfine Import and Export Co. Ltd as your trusted supplier. We look forward to serving you with our exceptional products and services.
