High Precision Dual Spindle CNC Turning Center By32s 2 System Machine Tool

Product Description

Product Description

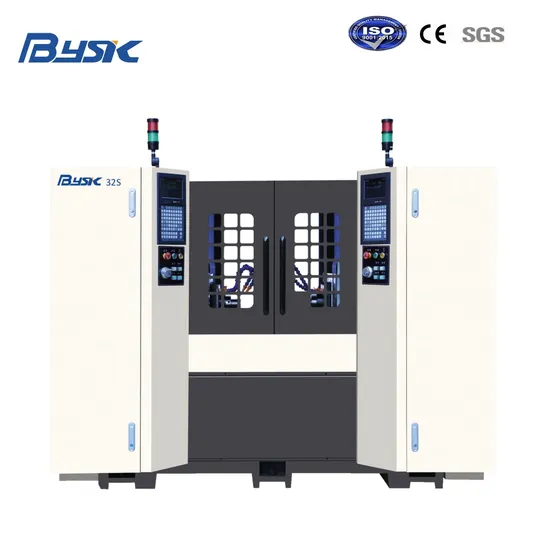

High Precision Dual Spindle CNC Turning Center BY32S 2 System Machine Tool
BY32S Model Main Features :
--BY32S is 2 spindle gang type cnc lathe with 2 cnc operating systems
--Suitable for processing profile diameter ≤ Φ 32mm
--In use, it is equivalent to running two lathes, but it can also save floor space, operators, and time in transportation and operation.
--Equipped with various forms of automatic loading and unloading arrangement, such as vibrating plates, to achieve unmanned automatic processing.
--Absolute value servo motor, no error will occur due to power outage


Product Parameters
BY32S Dual Spindle Gang type CNC Lathe Machine With 2 CNC Systems

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	10.8kW
CNC System	BYSK	YZ180
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ32mm
	Main Spindle Through-hole Diameter	Φ33mm
	Max Rotating Diameter	Φ190mm
	Main Spindle Center Height from Ground	980mm
	Main Spindle Speed	0-4000r/min
	Main Spindle Motor Power	4kW
Travel	X Axis Travel	780mm(Diameter)
	Z Axis Travel	250mm
	X Axis Servo Motor Power	1.3kW
	Z Axis Servo Motor Power	1.3kW
	Guide Rail Form	Linear Guide Rail

Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	150L
Lubrication System	Motor Power	25W
	Capacity	2L
Gang Tools System	T notch	/
Hydraulic System	Hydraulic Motor Power	1.5kW
	Pressure Value	3.0Mpa
Machine Size	Length * Width * Height	2400*1600*1900
	Machine Weight	/

BY32S Configurations
Item	Specification	Origins
System	YZ150	Baoyu BYSK
Main Spindle	32 Main Spindle Unit	Baoyu BYSK
Main Spindle Motor	4KW Absolute Value Servo Motor	Alpha
X Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
Z Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
X Axis Screw Rod	500*3210	YER
Z Axis Screw Rod	690*3210	YER
X Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK
Z Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK

Detailed Photos
Inner Structure Advantage:
--1. The number of tools is muitiple and the tool exchange is fast
--2. Mainly process all kinds of super slender parts
--3. The power head meets the needs of turning and milling complex processing(the live head can be selected).
--4. Reasonable layout, small dimension and cover little area
--5. Non-guide bush,fixed guide bush, rotary guide bush all be optional

Baoyu BYSK YZ180 CNC System Electrical Cabinet Driver Cabinet
BY32S CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, to improve the performance of lathe,extend the life of lathe
Processed Product Display
Some Suggestions:
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC ) is a comprehensive high-tech enterprise integarting R&D,Production,Sales &services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. BYSK CNC formerly known as Zhejiang Baoyu CNC Machine Tool Co.,ltd, and has a manufacturing base covering an area of 35,000 square meters in Taizhou,Zhejiang; It has a R&D center in Hangzhou, named as Hangzhou AOGE CNC Technology Co.,ltd. 2013 year, Anhui Yuzhou Machine Tool Co.,ltd bulit at Anhui Guangde city, covers 100,000 square meters.
We company specializes in the production ofCNC SWISS-type/Sliding Headstock Lathes,High-Precision Gang-type CNC Lathes,Turning&Milling Compund Centers, Flat Bed CNC Lathe Machines,Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes,Single spindle CNC Machinery,Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It's over 10 on invention patens, utility models and design patens. It's products are widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.
We adopts modern management concepts, deepends internal managements, we continuously improved the manufacturing process and services of products, it has successfully passed ISO9001(2016 Quality Management System), ISO14001(2016 Environment Management System), Measurement Management System Certificate, and obtained Good Standardization Certificate, Otherwise, we products also have passed CE Certificate and other authoritative certifications.
As an independent production enterprise, we always have the concept of improving the added value of individual products, Implemented the mission of "Provide high-quality products and best servises, and create the most hightest value for our customers", Carry out the business philosophy of " Service,Innovation,Specialization,Pragmatism", Finally realizes our vision of "Provide the most cost-effective machine tools for the world."
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
