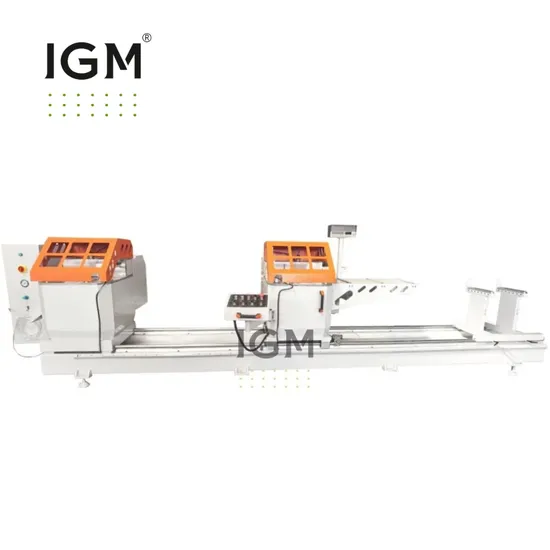

Digital Measuring Ruler up Cutting Aluminum Window Door Two Head Cutting Saw

Product Description

Product Description
Digital Measuring Ruler Up Cutting Aluminum Window Door Two Head Cutting Saw Model: LJZ2E-CNS-500*4200Application : Making Aluminum Window Door
Function : Cutting 45 /90 Degrees Angles of aluminum profiles
Main Features of Two Head Cutting Saw
1.Saw blade cuts from bottom to top max. width up to 300 mm and is used for cutting aluminum window door ,curtain walls, and industrial aluminum profiles.
2. Pneumatic swing angle of 45 and 90 degrees.
3. With Digital measuring ruler, convenient and fast.
4. Coolant spray to improve cutting quality.
5. The longest cutting length is 4200 mm, and customized length is supported.
6. The saw blades from Japan WAGEN are used for a long service life.
7. Both heads have horizontal and vertical clamping.
8.The spindle motor makes the saw blade feed more stable.
9. Auto opening safe shield to make the user safe.
Technical Parameters of Two Head Cutting Saw

Product Name	Two Head Cutting Saw
Model	LJZ2E-CNS-500*4200
Working Air Pressure	0.5 -0.8 Mpa
Power Supply	220V /380V / 415V 50 /60Hz (Customized)
Input Power	2.2kw*2
Blade Specification	¢500mm
Rotary Speed	2850 r/min
Cutting Angle	45°, 90°
Cutting Height	110-150 mm
Cutting Width	250-350 mm
Gross Weight	1700 KGS
Brand	IGM
Operation Manual	√
Operation Video	√
Color Customization	√
MOQ	1 SET
Overall Size	5800*1400*1700mm

Detailed Photos

Control panel, language is customized according to requirements; buttons are from well-known brands and durable.
With Digital measuring ruler, convenient and fast.

Cut from bottom to top, angle 45 / 90 degrees, maximum width 350mm. Cutting height 110mm at 45 degrees , 150mm at 90 degrees .
Adjustable coolant spray extends the life of the saw blade and improves cutting results.
Cutting Effiect:
High cutting precision, no burrs, and no gaps in splicing.
Pneumatic components and electrical components adopt world-renowned brands, which are stable and safe.
Precision square guide rail, high repeatability positioning accuracy.
2.2KW high power spindle motor
Drives the saw blade to rotate, runs smoothly and with high precision
Packaging & Shipping
LCL: Two Head Cutting Saw is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
