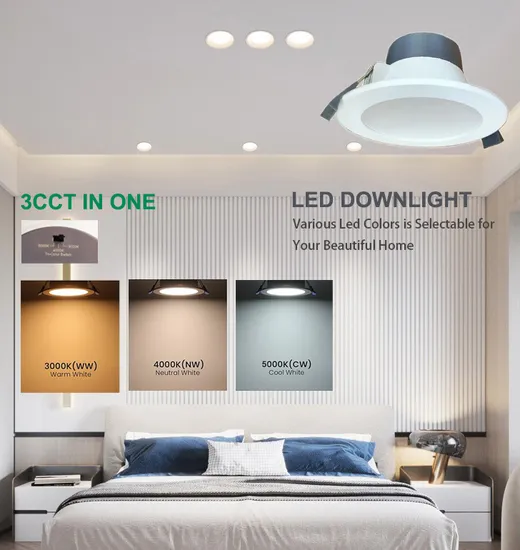

LED Downlight with CCT Switch Dimmable -11W
Basic Info.
Model NO.
MNDL11WTRI
Power
11W
Color Temperature
CCT
Lamp Body Material
Plastic
Source Number
Single Plug
Installation
Recessed
Lamp Installation
Terminal
Switch Type
With Remote Control
Warranty
3 Years
Application
Home Furnishing
IP Rating
IP44
Certification
CE
Dimmability
Yes
CCT Tunable
Yes
Life
30000hrs
Lumen
1200~1300lm
Cut out
D125mm
Transport Package
Color Box
Trademark
Customerized
Origin
China
HS Code
9405190000
Production Capacity
5000 Piece/Month
Product Description
Product Specification| Model | Power /W | Voltage /V | Lumen /lm | Efficiency /lm/W | Energy Class | Switch CCT | CCT/K | PF | CRI (Ra) | IP | Lifetime /Hrs | Dimmable | Ta °C | Cut out /mm | Size /mm |
| MNDL6WCCT | 6 | 220-240V | 580 ~620 | 100 | E | Tri-color | 3000 /4000 /5000 | >0.9 | >80 | IP44 | 30,000 | Yes | -20~40 | Φ75 | 96×57.5 |
| MNDL8WCCT | 8 | 220-240V | 820 ~900 | 110 | E | Tri-color | 3000 /4000 /5000 | >0.9 | >80 | IP44 | 30,000 | Yes | -20~40 | Φ90 | 114×57.5 |
| MNDL11WCCT | 11 | 220-240V | 1200 ~1300 | 110 | E | Tri-color | 3000/ 4000 /5000 | >0.9 | >80 | IP44 | 30,000 | Yes | -20~40 | Φ125 | 150×65 |
| MNDL20WCCT | 20 | 220-240V | 2200 ~2400 | 120 | E | Tri-color | 3000 /4000 /5000 | >0.9 | >80 | IP44 | 30,000 | Yes | -20~40 | Φ200 | 228×85 |
Company Introduction
Mindnew Lighting Co., Ltd was found in Year 2020Locate in Foshan City, Guangdong, South of ChinaProfessional for atmosphere table lamp, with materials of mental, plastics, battery and ceramics...Mindnew team has inherited the excellent gene on lighting innovation, we are committed to create featured atmosphere luminaire.Due to the competence on the product design of structure, electronic, optical and software, we are professional on developing new product by customized concept.Factory is 300m2 with 4 assembly line, efficiency production with flowing line and tooling, all the products are 100% aging and inspection.Products are CE fulfilled and patented.
