Lxshow Fiber Laser Metal Cutting Machine for Stainless Steel 2mm 4mm 12mm for Sale

Product Description

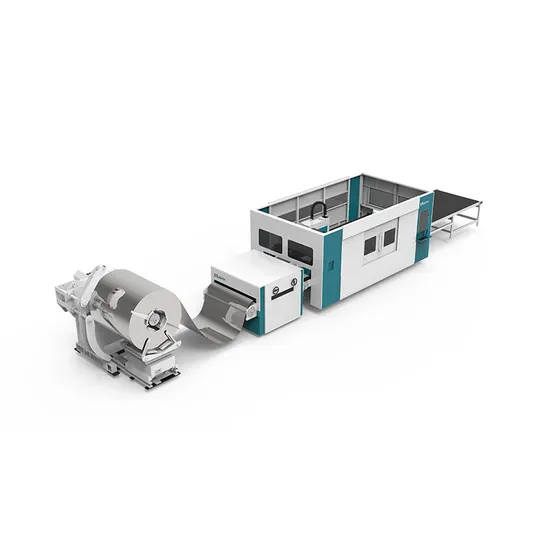

Metal Steel CNC Fiber Laser Cutting Machine

Product Parameters

Parameter Model	LX3015FLFiber laser cutting machine
Working Area	3050x1530mm
Laser Power	3000W(Optional Power: 1000W, 1500W, 2000W, 3000W, 4000W)
Laser Generator	Raycus
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	120m/min
Maximum acceleration	1.5G
Position Accuracy	±0.02mm/m
Repeat Positional Accuracy	±0.01mm
Cutting Thickness	≤20mm Carbon steel; Cutting Thickness ≤10mm Stainless steel
Control System	Weihong
Position Type	red dot
Power Consumption	≤21KW
Working Voltage	380V/50Hz
Roller quantity	13 pieces
Material width	0-1500mm
Rated load	8T
Work Environment	0-45°C, Moisture 45-85%

Main Parts
Weihong controller LS 6000A
Weihong controller is designed for sheet metal processing industry
launched a full-featured open loop control system.
Easy installation,easy adjustment, excellent performance, complete
solutions.
Automatic side patrol function, automatic obstacle avoidance function,
auto nesting function for free.
Aviation aluminum gantry
Aerospace grade aluminum light quality
High speed, good dynamic response,fast acceleration
Beam as a whole by the finite element analysis optimization of high rigidity
Lightweightdesign,durable
Italy WK Te/PEK rails
The rolling guide wear is very small ,can maintain accuracy for a long time.
The friction is very small ,the power loss is small; the heat generated during operation is extremely small, and it can run at high speed.
Ospri laser head LC40SL
Ospri famous laser cutting head.
Ospri laser head LC40 autofocus adjustment, which is suitable for 3kw and over it.
Excellent cutting control ability
Industry CPU+ cantilever
Easy operation.
Big screen.
Packaging & Shipping

Factory

As the largest manufacturer of laser application and intelligent equipment development in northern China. Jinan Lingxiu Laser Equipment Co.,Ltd is the leading brand in innovation and upgrades of laser equipment and it aims to provide high quality service in the global laser intelligence.
Since its foundation in 2004,LXSHOW Laser has always adhered to the principle of technology as the foundation, "Quality First". With customer-center idea as its basis,it takes every detail seriously in the process of production to ensure high performance and quality of each equipment as well as the stable operation in more than 150 nations around the world.
LXSHOW Laser takes Hanyu Jingu as its corporate headquarters. It has built plants successively in Pingyin Jinan, which provides an excellent basis for arranging laser equipment' industry chain for the ultimate purpose of offering stable and effective service of intelligent equipment.
In the era of industry 4.0, LXSHOW Laser is striving to provide basic equipment and customized solution for the future industrial production, also to help enterprises increase productivity.
Customer Visit

After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.
Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
