Factory Price French Type U1000 R2V RO2V 3 4 5 Core 10mm 16mm 25mm 35mm 50mm 70mm 95mm Industrial Unarmoured Copper Electric Power Cable

Product Description

Product Description

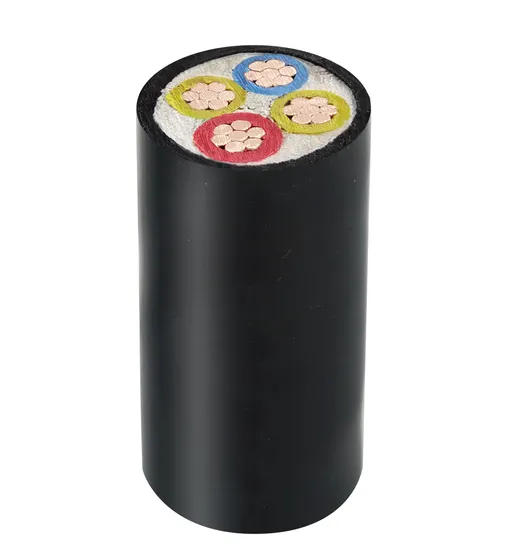

U-1000 R2V RO2V Power cable 0,6/1 kV with Cu conductors, XLPE insulated and PVC sheathed
APPLICATION
U-1000 R2V cables can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations. In case of high ambiant temperature, use correction coefficient.
INSTALLATION
These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection. Cross sections 1,5 - 2,5 and 4 mm² have to be of class 2 flexiblility, if the cable is connected to equipment subject to vibration.
CONSTRUCTION
Conductors: Cu, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere compound
Sheath: PVC compound
PARAMETER

Cross Section	Insulation thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
mm2	mm	mm	mm	kg/km
1x1.5	0.7	1.09	6.6	45
1x2.5	0.7	1.09	7	55
1x4	0.7	1.09	7.6	75
1x6	0.7	1.09	8.2	100
1x10	0.7	1.09	9.2	140
1x16	0.7	1.09	10.5	205
1x25	0.9	1.09	12.5	315
1x35	0.9	1.09	13.5	400
1x50	1	1.09	15	530
1x70	1.1	1.09	17	725
1x95	1.1	1.18	19	985
1x120	1.2	1.18	21	1260
1x150	1.4	1.26	23	1520
1x185	1.6	1.26	25.5	1940
1x240	1.7	1.35	28.5	2310
2x1.5	0.7	1.43	10.5	115
2x2.5	0.7	1.43	11.5	145
2x4	0.7	1.43	13	195
2x6	0.7	1.43	14	265
2x10	0.7	1.43	16	390
2x16	0.7	1.43	18.5	560
2x25	0.9	1.43	22	850
2x35	0.9	1.43	24.5	1080
3x1.5	0.7	1.43	11	130
3x2.5	0.7	1.43	12.5	170
3x4	0.7	1.43	13.5	230
3x6	0.7	1.43	15	325
3x10	0.7	1.43	17	485
3x16	0.7	1.43	19.5	705
3x25	0.9	1.43	23.5	1080
3x35	0.9	1.43	26	1390
3x50	1	1.43	29	1840
3x70	1.1	1.52	34	2540
3x95	1.1	1.6	38.5	3430
3x120	1.2	1.69	42.5	4440
3x150	1.4	1.86	47.5	5380
3x185	1.6	1.94	53	6920
3x240	1.7	2.11	59.5	8420
3x300	1.8	2.28	66	11300
4x1.5	0.7	1.8	11.3	180
4x2.5	0.7	1.8	12.2	220
4x4	0.7	1.8	13.3	300
4x6	0.7	1.8	15	420
4x10	0.7	1.8	17.25	630
4x16	0.7	1.8	18.8	900
4x25	0.9	1.8	23	1350
4x35	0.9	1.8	25.1	1750
4x50	1	1.9	29.1	2350
4x70	1.1	2	33.9	3400
4x95	1.1	2.1	38.4	4500
4x120	1.2	2.3	42.4	5700
4x150	1.4	2.4	47.2	7050
4x185	1.6	2.6	52.65	8700
4x240	1.7	2.8	59	11400
4x300	1.8	3	64.8	14200
3x50+35	1	1.8	28.8	2200
3x70+50	1.1	2	33.4	3100
3x95+50	1.1	2.1	37	3950
3x120+70	1.2	2.2	41.3	5050
3x150+70	1.4	2.3	45.1	6100
3x185+70	1.6	2.5	50	7400
3x240+95	1.7	2.7	55.8	9700
5x1.5	0.7	1.8	12.1	205
5x2.5	0.7	1.8	13.1	260
5x4	0.7	1.8	14	350
5x6	0.7	1.8	16.3	500
5x10	0.7	1.8	18.5	760
5x16	0.7	1.8	20.6	1100
5x25	0.9	1.8	25.4	1600
7x1.5	0.7	1.8	12.3	260
7x2.5	0.7	1.8	13.2	330
7x4	0.7	1.8	15.4	450
8x1.5	0.7	1.8	13.9	290
8x2.5	0.7	1.8	14.9	380
8x4	0.7	1.8	16.5	520
10x1.5	0.7	1.8	15.8	350
10x2.5	0.7	1.8	17	450
10x4	0.7	1.8	19	630
12x1.5	0.7	1.8	15.5	390
12x2.5	0.7	1.8	16.8	510
12x4	0.7	1.8	19.6	700
14x1.5	0.7	1.8	17	440
14x2.5	0.7	1.8	18.3	580
14x4	0.7	1.8	20.5	800
19x1.5	0.7	1.8	17.9	550
19x2.5	0.7	1.8	19.4	740
19x4	0.7	1.8	22.6	1050
24x1.5	0.7	1.8	20.7	670
24x2.5	0.7	1.8	23.2	900
30x1.5	0.7	1.8	22.6	800
30x2.5	0.7	1.8	24.5	1100
37x1.5	0.7	1.8	23.5	950
37x2.5	0.7	1.8	26.3	1300
