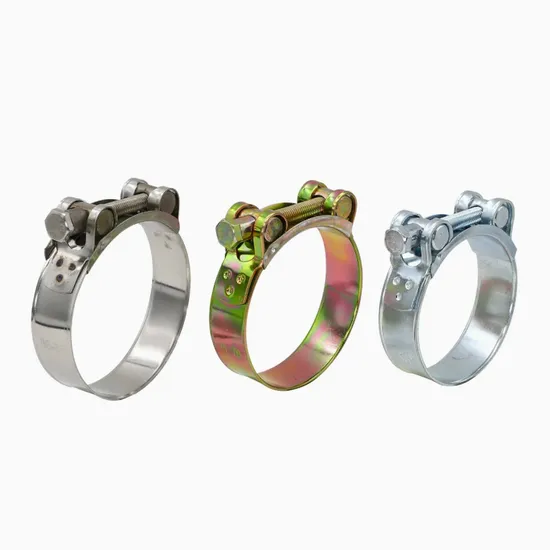

Galvanized Plated/304/316/201 European Style Heavy Duty Hose Clamp
| US$0.17-3.93 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
Heavy Duty T Bolt Hose Clamp
Connection
Female
Combination
W1, W2, W4
Stucture
T-Clamp
Customized
Support
Usage
Heavy Duty Clamp, Pipe Clamp
Transport Package
Bulk in Carton and Palletized
Specification
Various sizes, customized
Trademark
DEYU
Origin
China
HS Code
7326909000
Production Capacity
10000 PCS/Day
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 30.00cm
Package Gross Weight
15.000kg
Product Description
Product Description| Size | Band size (WxT) (mm) | Bolt size(mm) | Breaking Tonque(Nm) | |
| W1 | W2,W4 | |||
| 17-19 | 18x0.6 | 18x0.5 | M5x40 | ≥5Nm |
| 20-22 | 18x0.6 | 18x0.5 | M5x40 | ≥5Nm |
| 23-25 | 18x0.6 | 18x0.5 | M5x40 | ≥5Nm |
| 26-28 | 18x0.6 | 18x0.5 | M5x40 | ≥5Nm |
| 29-31 | 20x0.8 | 20x0.6 | M6x50 | ≥15Nm |
| 32-35 | 20x0.8 | 20x0.6 | M6x50 | ≥15Nm |
| 36-39 | 20x0.8 | 20x0.6 | M6x50 | ≥15Nm |
| 40-43 | 20x0.8 | 20x0.6 | M6x50 | ≥15Nm |
| 44-47 | 22x1.2 | 22x0.8 | M6x55 | ≥15Nm |
| 48-51 | 22x1.2 | 22x0.8 | M6x55 | ≥15Nm |
| 52-55 | 22x1.2 | 22x0.8 | M6x55 | ≥15Nm |
| 56-59 | 22x1.2 | 22x0.8 | M6x55 | ≥15Nm |
| 60-63 | 22x1.2 | 22x0.8 | M6x55 | ≥15Nm |
| 64-67 | 22x1.2 | 22x0.8 | M6x60 | ≥15Nm |
| 68-73 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 74-79 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 80-85 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 86-91 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 92-97 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 98-103 | 24x1.5 | 24x0.8 | M8x60 | ≥25Nm |
| 104-112 | 24x1.5 | 24x0.8 | M8x70 | ≥25Nm |
| 113-121 | 24x1.5 | 24x0.8 | M8x70 | ≥25Nm |
| 122-130 | 24x1.5 | 24x0.8 | M8x70 | ≥25Nm |
| 131-139 | 26x1.7 | 26x1.0 | M10x85 | ≥40Nm |
| 140-148 | 26x1.7 | 26x1.0 | M10x85 | ≥40Nm |
| 149-161 | 26x1.7 | 26x1.0 | M10x85 | ≥40Nm |
| 162-174 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 175-187 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 188-200 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 201-213 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 214-226 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 227-239 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
| 240-252 | 26x1.7 | 26x1.0 | M10x105 | ≥40Nm |
Features:Heavy-Duty Band Strength: This clamp features a robust band with high tensile strength, making it suitable for demanding applications.Welded Bridge for Hose Protection: A welded bridge on the clamp band provides optimal protection for the hose, reducing wear and tear.Solid Metal Rollers: Reinforced with solid metal rollers, the clamp enhances band strength and durability.Socket Head Screws for Easy Installation: Designed with socket head screws for simple and secure installation.Welded Construction and Raised Edges: The welded construction and raised edges improve security and reliability in high-stress environments.Product Parameters
