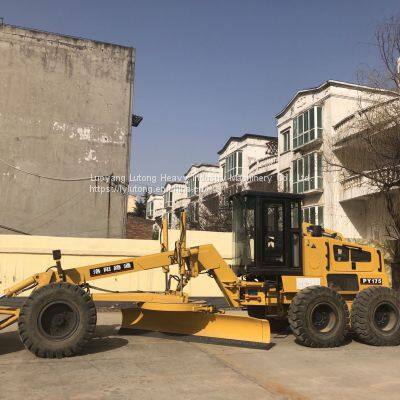

Lutong 130 horsepower self-propelled grader Made in China

Product Details

Product Description

Product Description
Tip:
Due to market price fluctuations, the above product prices and attributes are for reference only
Please contact customer service for specific details,
Sincerely look forward to working with you! !
Contact number: +8617503799066
Email: lutongjason@gmail.com
WeChat: 17503799066
Facebook: Luoyang Lutong
Twitter:
TikTok: lutongjason
Official website:
MAIN FEATURES01Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
02Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
03Driving axle with integrated free-wheel anti-slip differential and b roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
04Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
05Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
06Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
07Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
08Dual diagonal appearance with whole metal hood 1m×1m distance.
09Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
10It is optional for front bulldozing plate and rear ripper.
MAIN TECHNICAL PARAMETER

Overall dimension	L×W×H		7900×2050×3200mm
	Min.ground clearance of front axle		450mm
	Min.ground clearance of rear axle		410mm
	Wheel tread		1590mm
	Wheelbase(front/tear)		6120mm
	Length of blade		3350mm
	Wheelbase of rear axles		1410mm
Engine	Model		YN48GBZ
	Type		Inline,water-cooled,four-stroke,direct injection
	Rated power		92kw
	Engine displacement		4.8L
	Cylinder bore/stroke		108mm/132mm
	Min.fule-consume ratio		≤225g/(kw-h)
Transmission system	Max.speed(forward/reverse)		40km/h 30km/h
	Gearbox type		Fixed shaft power stage
	Torque converter		Single-stage single-phase three-element
	Gears		Four forward four reverse
Overall parameters	Overall weight		7450kg
	Max.swing angle of front axle		±16°
	Max.steering angle of front wheel		±45°
	Blade size(length*height*thickness)		3350×500×18mm
	Blade plate diameter		1250mm
	Steering angle of articulated frame		±23°
	Steering angle of blade		360°
	Groud clearance of blade		450mm
	Cutting depth of blade		260mm
	Inclination angle of blade		Forward 47°/backward 5°
	Sliding range of blade		Left500mm/right550mm
Hydraulic system	Type		Open-type system
	System pressure		16MPa
Fill capacity	Fuel		105L
	Hydraulic oil		75L
Transmission system	Tire type		16/70-24
