High Efficiency Plastic Making Machine Injection Moulding for PE/PP/HDPE/LDPE

Product Description

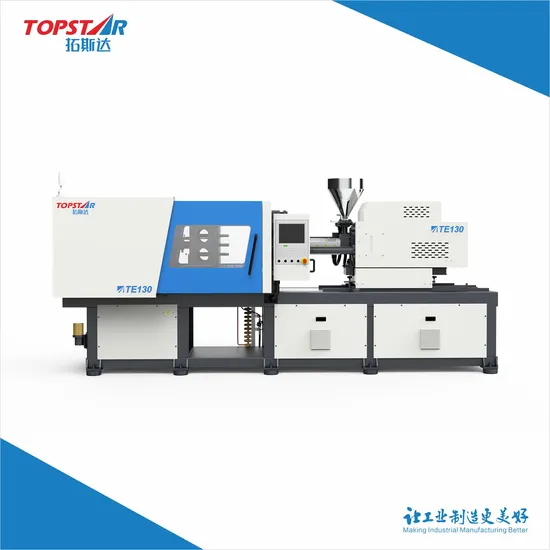

TE general-purpose precision servo-driven injection molding machine 80T-230T
Product Features
1. Advanced Ball screws design with European professional controller makes
the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more
accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing
requirements and color mixing performance of different materials.
Application industries
electronics, containers, 3C home appliances, cosmetics, auto parts, FMCG.
Product Parameters

Project	Unit	TE130 L150/H150/L200/H200/L260/H260/L300/H300
Clamping Unit
Clamping Style	-	Hyperbolic Elbow (5 points)
Clamping Force	ton	130
Opening/Clamping Stroke	mm	400
Max Platen Distance	mm	850
Die Height(Min/Max)	mm	175-450
Space Between Tie Bars	mm	510*510
Platen Dimension	mm	720*720
Ejecting Force	ton	3.2
Ejector Stroke	mm	100
Ejector Stroke	unit	5
Screw Driving Mode	-	Electric belt drive			Electric belt drive			Electric belt drive			Electric belt drive
Screw Diameter	mm	25	28	32	28	32	36	32	36	40	36	40	45
Screw L:D	-	20	20	20	20	20	20	20	20	20	20	20	20
Max injection Volume	cm3	66	83	109	92	121	153	137	173	214	203	251	318
Max Weight	g	60	75	98	83	109	137	123	156	192	183	226	286
Screw Rotate Speed	r.p.m	330			330			330			330
Plasticizing Capacity	g/s	7.1	10.0	15.0	10.0	15.0	21.3	15.0	21.3	29.2	21.3	29.2	41.6
Screw Stroke	mm	135			150			170			200
Nozzle Contact Force	ton	2.1			3			3			5.6
Injection Unit	Unit	L156			L200			L260			L300
Max injection Speed	mm/s	200			200			200			200
Injection Rate	cc/sec	89	112	146	112	146	185	146	185	229	185	229	289
Max Injection Pressure	bar	2650	2120	1620	2600	1990	1570	2490	1970	1590	2460	1990	1570
Max Keeping Pressure	bar	2120	1696	1296	2080	1592	1256	1992	1576	1272	1968	1592	1256
Injection Unit	Unit	H150			H200			H260			H300
Max injection Speed	mm/s	200			200			200			200
Injection Rate	cc/sec	156	196	256	196	256	324	256	324	400	278	343	434
Max Injection Pressure	bar	2650	2120	1620	2600	1990	1570	2490	1970	1590	2460	1990	1570
Max Keeping Pressure	bar	2120	1696	1296	2080	1592	1256	1992	1576	1272	1968	1592	1256
General
Heating Power	kw	4.5	6.1	8.2	6.1	8.2	10.3	8.9	10.3	11.0	10.3	11.0	13.3
Main power switch cspacity	A	60			100			100			125
Temperature Control Area	-	5			5			5			5
Machine Weight	ton	5.2			5.2			5.2			5.2
Machine Dimension	m	4,53*1.44*2.05			4,53*1.44*2.05			4,53*1.44*2.05			4,53*1.44*2.05

Note: The company reserves the right to modify the technical parameters without prior notice.
Overall Dimension
Template Size
