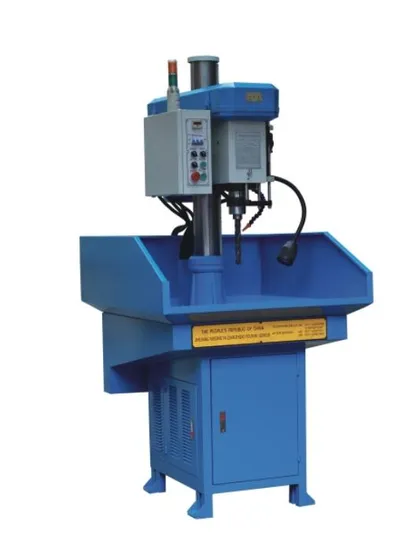

Single Vertical Column Ydz30 Hydraulic Drilling Machine
| US$1,700.00-1,800.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
YDZ30
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Outer Diameter of Stand Column
120mm
Outer Diameter of Spindle
75mm
Stroke of Spindle
140mm
Spindle Power
2HP/6p
Transport Package
Wooden
Specification
worktable size 370*400
Trademark
Yongxiong
Origin
Zhejiang, China
HS Code
8465920000
Production Capacity
5000sets/Year
Product Description
Product Description1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Detailed Photos
Product Parameters
| Specifications | YDZ30 |
| Max drilling dia | S45C/30mm |
| Spindle taper | MT3 |
| Spindle stroke | 140mm |
| Headstock travel(manual) | 200mm |
| Spindle speeds | 500/800/1200/1800 rpm |
| Feed range | 0.056-1.80mm/r 9 steps |
| Table size | 560x480mm |
| Table vertical travel | 300mm |
| Max.distance spindle nose to table | 750mm |
| Main motor power | 3kw |
| Sttandard working pressure | 20kgf/cm(2mpa) |
| N/W | 420 kg |
