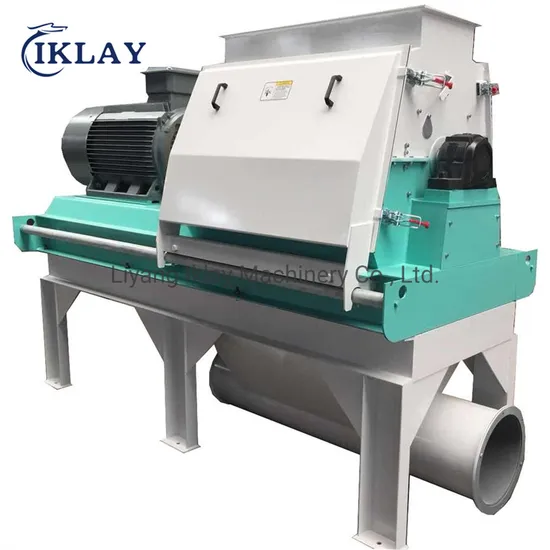

Cattle Sheep Chicken Manure Animal Droppings Organic Fertilizer Grinding Equipment Hammer Mill Supplier

Product Description

Cattle Sheep Chicken manure animal droppings organic fertilizer grinding equipment hammer mill supplier

TECHNICAL PARAMETER

Model		SFSP66*40		SFSP66*60		SFSP66*80		SFSP66*100		SFSP66*120
Parameter
Rotor diameter (mm)		660		660		660		660		660
Spindle rotate speed (rpm)		2960		2970		2970		2980		2980
Hammer line speed (m/s)		102		102		102		102		102
Grinding room width (mm)		400		600		800		1000		1200
Hammer quantity (fine grinding)		40		56		84/116		120		136
Power( kw)		37	45	55	75	90	110	132	160	200	220
Normal air volume	Fine grinding	55	60	72	78	95	102	145	155	190	205
( m3/min)
Capacity(t/h)		0.5-1	1.5-2	2-2.5	2.5-3	3-4	4-5	5-6	5-7	6-8	8-10

FEATURES 1.This series hammer mill is mainly used for crushing coarse sawdust,wood shavings and wood chips to the fineness needed to be pelletized,or small wood pieces less than 40mm.

2.Direct transmission is adopted.The reasonable arrangement of hammers and gap between hammers and screens make sure the final products are in uniform fineness.The tool bit of the hammer is spray welding with carbon tungsten alloy.

3.The secondary grinding chamber is assembled in this machine.The base has goof rigidity and little vibration.

4.The bearing imported is with high quality.When working, it has low tem-perature rising.The bearing pedestal is
S KF brand from Germany.

5. Various thickening screen sieve sizes can be selectable. Quick-starting type door opening system makes it fast to change the new screen, easy to operate and convenient to maintain.
