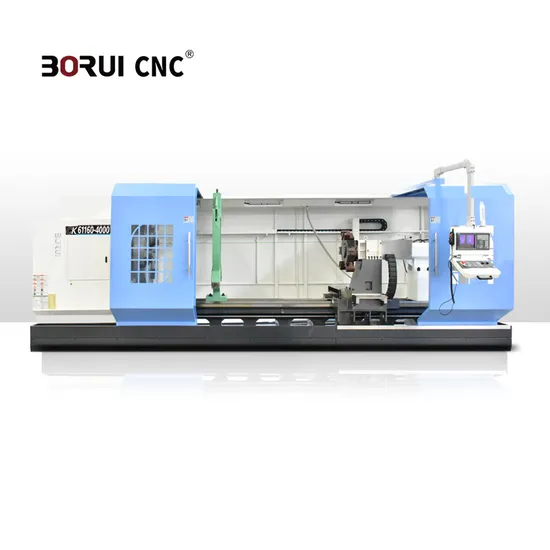

Ck61160 CNC Lathe Machine From China Type CNC Automatic Lathe

Product Description

CK61160 Cnc Lathe machine from china type cnc automatic lathe
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.
The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
CNC Lathe Features:
A high strength, widening the carriage, suitable for heavy cutting
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration: manual chuck
Optional configuration : hydraulic chuck
Product Parameters
The main specification :

Item		Unit	Parameters
Processing range	The maximum turning diameter on the bed	mm	Φ1600
	The maximum rotary diameter of the workpiece on the horizontal carriage	mm	Φ960
	Maximum Disc Processing Diameter	mm	Φ960
	Maximum workpiece length of the machine tool (distance between two centers)	mm	4000
	Bed rail span	mm	755
Spindle	Spindle head form		A2-15
	Spindle diameter	mm	Φ130
	Main shaft front bearing	mm	200
	Spindle speed range	r/min	10~50rpm,30~80rpm 50~200rpm,80~320rpm
	Spindle series		Manual 4-speed (in-gear stepless speed change)
	Hollow hydraulic chuck diameter	mm	Φ800
	main motor power	kW	30
Hydraulic tailstock	Tailstock sleeve diameter	mm	Φ160
	Tailstock sleeve moving distance	mm	300
	Tailstock sleeve front taper hole		Mohs 6
Feed axis	Feed motor (X/Z)	Nm	20/36
	Feed axis rapid traverse speed (X/Z)	m/min	X∶4/ Z∶4
	Maximum stroke of feed axis (X/Z)	mm	720/3650
Turret	Tool holder form		Horizontal 12 stations
	Tool Holder Tool Capacity		12
Lubricating	Lubrication form		Automatic Intermittent Lubrication
	Lubrication pump capacity	L	4
Cooling	Coolant head	m	7
	Cooling pump flow	L/min	30
Precision (standard test piece)	Dimensional accuracy of the outer circle of the finish car		IT7
	Ra value of the surface roughness of the outer circle of the finish car	μm	3.2
	Roundness of outer circle of finishing car	mm	≤0.01
	Consistency of machining diameter of outer circle in finish turning	mm	0.03/300
	Flatness of finish turning end face	mm /mm	0.025/φ300
	Feed axis repeat positioning accuracy (X/Z)	mm	X:0.012/Z:0.05
	Feed axis positioning accuracy (X/Z)	mm	X:0.04/Z:0.095
Weight and full cover	Gross machine weight	kg	15800
	Dimensions (length × width × height) (excluding chip conveyor and system panel)	mm	7500×2350×2600

Details Display

Company Profile
Since 1996,20 years' history for machine tool manufacturing10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine tools

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
